RECOM Power R-78K DC/DC Converters

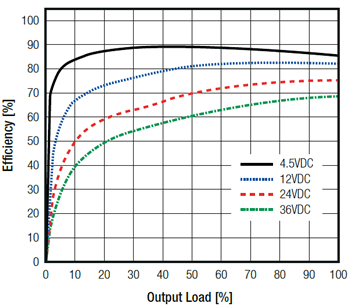

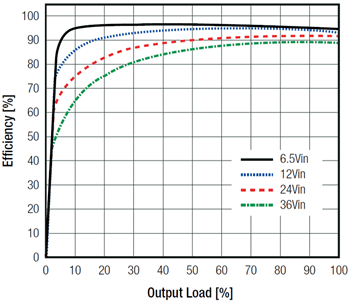

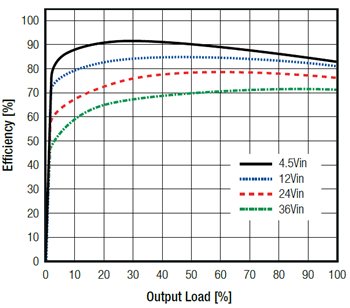

RECOM Power R-78K DC/DC Converters are available in 0.5A, 1A, and 2A versions with fixed outputs of 1.2V, 1.5V, 1.8V, 2.5V, and 6.5V, depending on the model, as well as traditional outputs of 3.3V, 5V, 9V, 12V, and 15V. The R-78K-0.5, R-78K-1.0, and R-78K-2.0 series all offer a wide input voltage range of 4.5V_DC to 36V_DC with efficiency of up to 95% or 96% and no need for heatsinks. The R-78K units have an ambient operating temperature range of -40°C to +90°C, including versions with no derating. Protections include undervoltage lockout and short circuit with automatic recovery. These SIP3 converters can meet EN 55032 class B EMC specifications with a simple input filter.

RECOM Power R-78K DC/DC Converters are designed to save board space with an 11.5mm x 7.55mm footprint and 10.2mm height for the 0.5A and 1A variants, and an 11.5mm x 8.5mm footprint with 17.5mm height for the 2A variant.

The R-78K-2.0L components feature 90° bent pins, which allow the component to lie flat on the PCB to reduce the overall height of the solution.

Features

Non-isolated DC/DC converters
90° bent pins (R-78K-2.0L)
Efficiency up to 95% or 96%, no need for heatsinks
Undervoltage and short-circuit protection with automatic recovery

Pin compatible with 78 series regulators
TO-220-compatible SIP3 package
Meets EN 55032 Class B EMC specifications with a simple input filter

Applications

Industrial
Automation
Test and measurement

Specifications

Add suffix “L” for 90° bent pins
0.5A, 1A, or 2A current
4.5V_DC to 36V_DC wide input voltage
Output
- Fixed: 1.2V, 1.5V, 1.8V, 2.5V, or 6.5V
- Traditional: 3.3V, 5V, 9V, 12V, and 15V

Dimensions
- 0.5A and 1A variants: 11.5mm x 7.55mm footprint, 10.2mm height
- 2A variant: 11.5mm x 8.5mm footprint, 17.5mm height

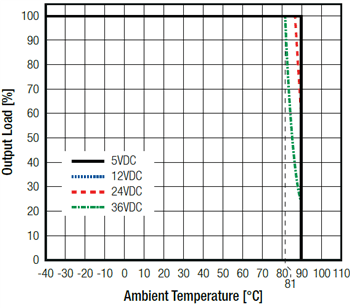

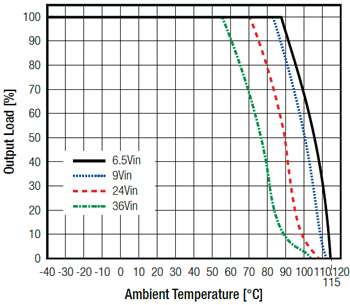

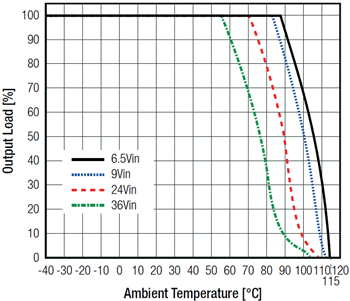

-40°C to +90°C ambient operating temperature range (derating varies with series)
