REAN RCEM-Z-100 Fast Connection Ethernet Connector

REAN RCEM-Z-100 Fast Connection Ethernet Connector offers a black plating shell and locking latch and features UL 94V-0 rated materials. This connector provides IP65 environment protection and does not include any RJ45 plug. The RCEM-Z-100 Ethernet connector offers a cable O.D. of 5mm to 8mm. This connector features IP65 protection when mating with related Ethernet Chassis and a robust design to withstand harsh environments and frequent use, ensuring long-lasting performance. The RCEM-Z-100 fast connection Ethernet connector offers >1000 mating cycles lifetime and operates at -20°C to 70°C temperature range.

Features

Robust design to withstand harsh environments and frequent use
Ensures long-lasting performance
IP65 protection when mating with related Ethernet chassis
UL 94V-0 rated materials
>1000 mating cycles lifetime

The release latch function on the connector side makes it easy to connect and disconnect the RJ45 system, saving time and
effort
-20°C to 70°C operating temperature range
Does not mate to etherCON connector system

REAN RCEM-Z-100 Fast Connection Ethernet Connector

Features

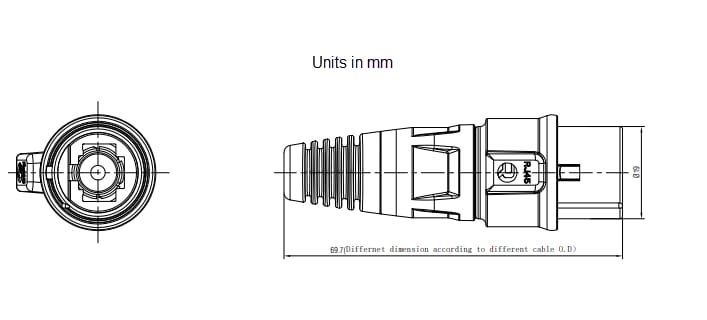

Dimension Diagram
