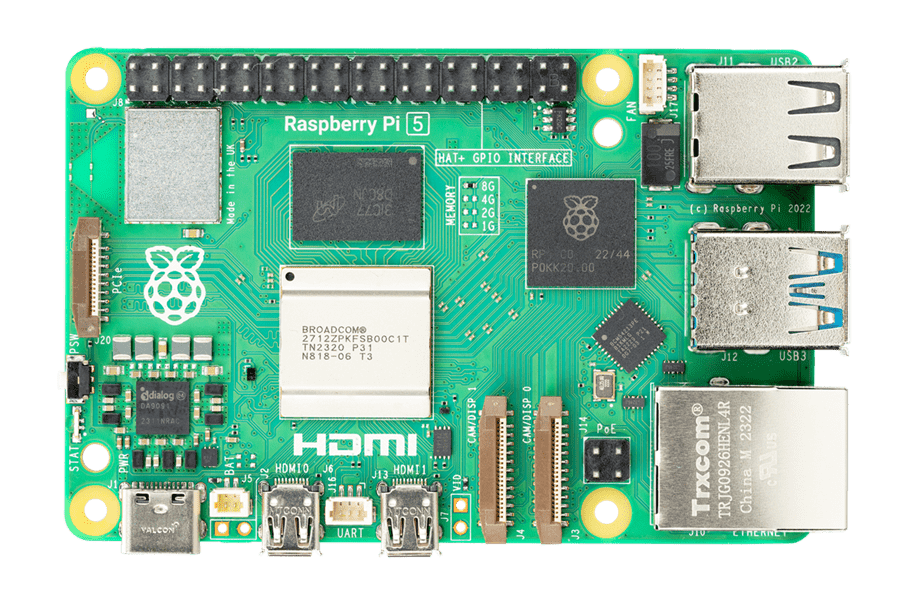

Raspberry Pi 5 Single Board Computer

The Raspberry Pi 5 Single Board Computer offers two to three times the speed of other generations. Pi 5 is a full-size Raspberry Pi computer developed with silicon in-house. The device delivers faster transfer speed to external UAS drives and other high-speed peripherals. Two 4-lane MIPI interfaces support any combination of up to two cameras or displays. Meanwhile, peak SD card performance is doubled via support for the SD104 high-speed mode. The Pi 5 Single Board Computer enables a single-lane PCI Express 2.0 interface, which permits connection of higher-bandwidth peripherals.

The Raspberry Pi 5 is offered in 4GB and 8GB variants and features dual-band 802.11ac Wi-Fi^® and BLUETOOTH^® 5.0 / Bluetooth Low Energy (BLE) connectivity.

Features

Broadcom BCM2712 2.4GHz quad-core 64-bit Arm^® Cortex^®-A76 CPU, with cryptography extensions, 512KB per-core L2 caches, and a 2MB shared L3 cache
VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
Dual 4Kp60 HDMI® display output with HDR support
4Kp60 HEVC decoder
LPDDR4X-4267 SDRAM (4GB and 8GB SKUs available at launch)
Dual-band 802.11ac Wi-Fi
Bluetooth 5.0 / Bluetooth Low Energy (BLE)
microSD card slot, with support for high-speed SDR104 mode

2x USB 3.0 ports, supporting simultaneous 5Gbps operation
2x USB 2.0 ports
Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
2× 4-lane MIPI camera/display transceivers
PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
5V/5A DC power via USB-C™, with Power Delivery support
Raspberry Pi standard 40-pin header
Real-time clock (RTC), powered by an external battery
Power button
