Quectel UMTS and LTE EVB Kit

Quectel Wireless Solutions UMTS and LTE EVB Kit is a platform for evaluating UMTS, LTE, and Wi-Fi modules’ performance. The UMTS & LTE EVB Kit can test the basic functionalities of these modules. The Quectel UMTS and LTE EVB Kit contains a USB to UART converter cable, USB cable, four RF cables, two main antennas, GNSS antenna, Wi-Fi antenna, earphones, USB 2.0 to RS232 driver, ALC5616 and TLV320AIC3104 codec boards, and eight bolts and nuts for assembling.

Kit Contents

  • USB to UART converter cable x1
  • USB cable x1
  • RF cables x4
  • Main Antennas x2
  • GNSS Antenna (passive) x1
  • Wi-Fi Antenna x1
  • Earphone x1
  • USB 2.0 to RS232 driver and USB driver disk x1
  • ALC5616 and TLV320AIC3104 codec boards x2
  • Bolts and nuts for assembling EVB x1 (4 for each type)
  • Instruction sheet of giving instructions for EVB connection, details of EVB accessories, etc. x1

Applicable Modules

•  UMTS & LTE Modules:
   •  UC20
   •  UGxx (UG96/UG95)
   •  EC2x (EC25/EC21/EC20/EC20 R2.0/EC20 R2.1)
   •  EG9x (EG91/EG95)
   •  AG35
   •  BG96
•  Wi-Fi Modules:
   •  FC20 Series (FC20/FC20-N)
   •  AF20

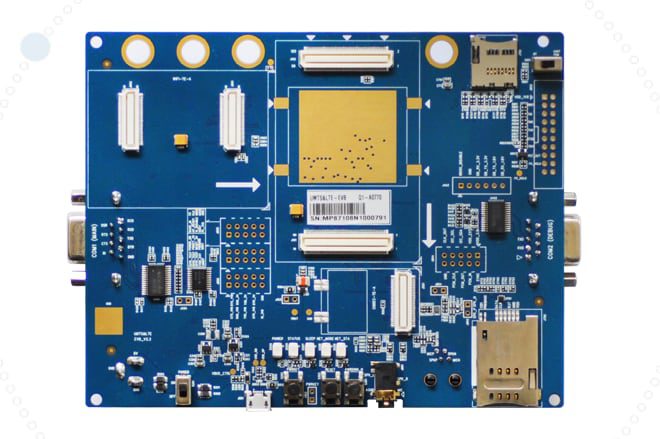

Board Overview

Quectel UMTS and LTE EVB Kit
