Quectel Smart EVB Kit

Quectel Wireless Solutions Smart EVB Kit is configured to evaluate the functionalities of smart modules. The Smart EVB Kit features multiple hardware interfaces, including power, USB, audio, USIM, and UART. In addition, the Quectel Smart EVB Kit provides keypads and LED indicator lights.

Features

Two (U)SIM interfaces
Two UART interfaces
Multiple audio interface

USB interface
Keypads and LED indication lights

Kit Contents

USB to UART converter cable x1
USB cable x1
RF cable x3
Main antenna x2
WiFi antenna x1

GNSS antenna (passive) x1
Earphone x1
USB 2.0 to RS232 driver and USB driver disk x1
Li-polymer battery x1
Bolts and nuts for fixing EVB x1

Applicable Modules

• LTE Cat 4 SC20 Module

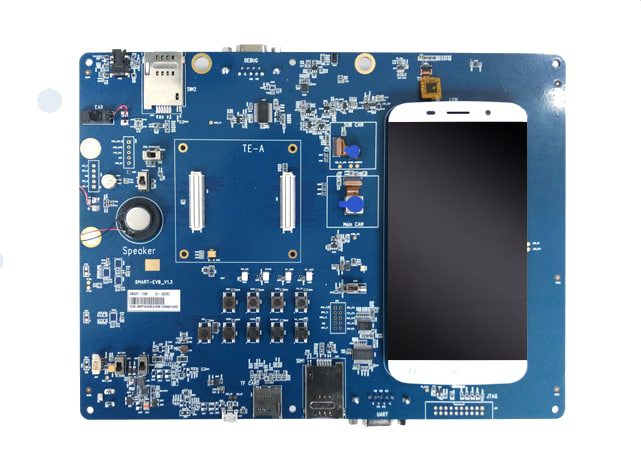

Front View

Quectel Smart EVB Kit

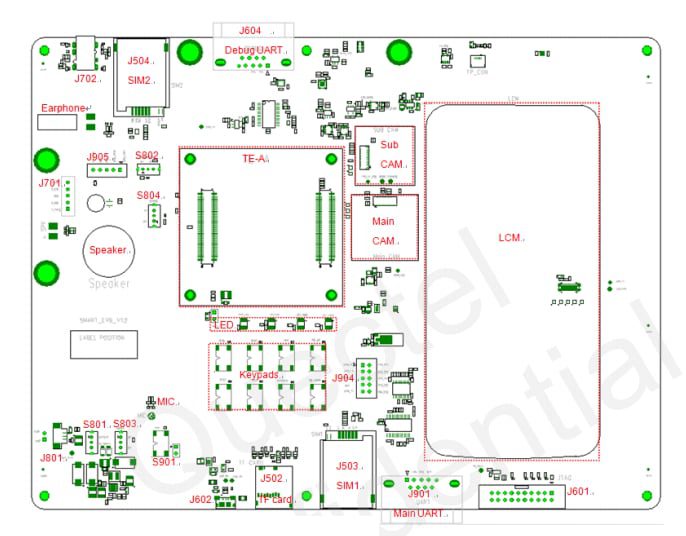

Interface Overview

Block Diagram - Quectel Smart EVB Kit

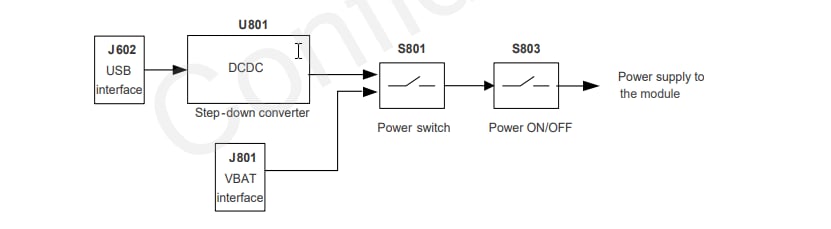

Simplified Power Supply Schematic

Schematic - Quectel Smart EVB Kit
