Quectel Mini PCIe EVB Kit

Quectel Wireless Solutions Mini PCIe EVB Kit is an assistant system integrator for developing and evaluating products based on Quectel Wireless Modules. The Kit features a 4.5~5.5V power supply, 2 LEDs, and a 94 x 58mm package. The Quectel Mini PCIe EVB Kit offers many hardware interfaces, including USB, Audio, USIM, and UART.

Features

DC supply 4.5~5.5V typically 5V
3.3V at J202 V_BAT
Interfaces
- USIM/SIM card (6 pins) connector with push loading, 3V and 1.8V
- Audio Interface used for earphone and handset
- UART – COM-serial interface for data communication (default 115200bps), 460800bps max. baud rate
- USB 2.0 interface
2 LEDs are available for signal indication
94 × 58mm Physical characteristics size

Kit Contents

USB to UART converter cable x1
USB cable x1
RF cable x3
Main Antenna x2

GNSS Antenna (passive) x1
Earphone x1
USB 2.0 to RS232 driver and USB driver disk x1
Bolts and nuts for fixing EVB x1

Applicable Modules

• UC20 Mini PCIe
• UC15 Mini PCIe
• EC20 Mini PCIe

Quectel Mini PCIe EVB Kit

Features

Kit Contents

Applicable Modules

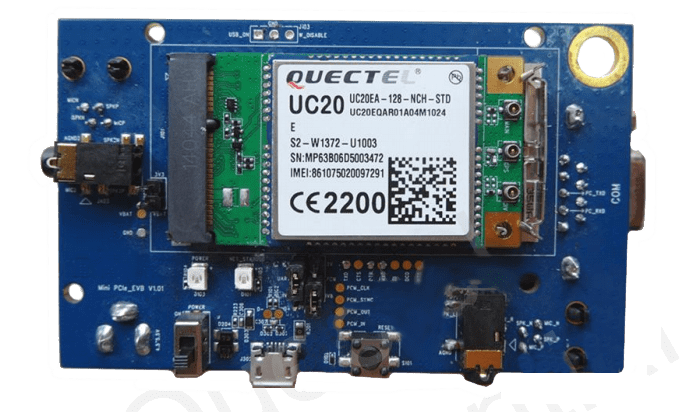

Front View

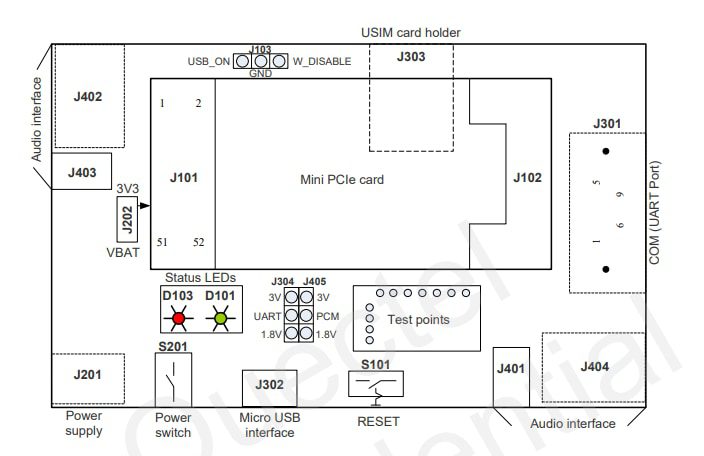

System Overview

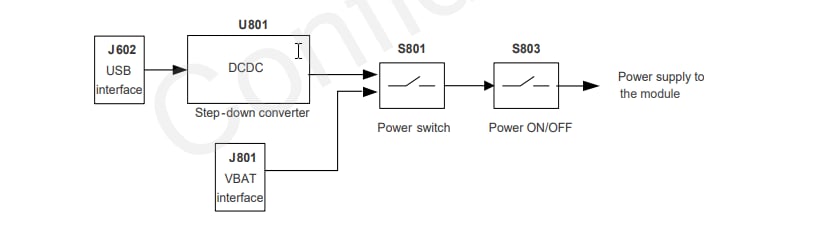

Simplified Power Supply Schematic
