Quectel L96 EVB Kit

Quectel Wireless Solutions L96 EVB Kit is designed to evaluate the GNSS L96 module. The L96 is a concurrent multi-GNSS receiver module with an embedded chip antenna. The L96 module features 33 tracking channels, 99 acquisition channels, and 210 PRN channels.

The Quectel L96 EVB Kit’s main power is supplied via a micro-USB interface. Both micro-USB and UART interfaces can be used for data communication and can be switched by the alternation switch. The board offers several hardware interfaces, including a micro-USB, UART, and antenna interface.

Features

Micro-USB interface
UART interface
Antenna interface

Kit Contents

USB cable x1
GNSS antenna (Active) x1
USB Flash drive

Instruction sheet for EVB connection, details of EVB accessories, etc.
Bolts and coupling nuts x4 for each type

Applicable Modules

• L96

Quectel L96 EVB Kit

Features

Kit Contents

Applicable Modules

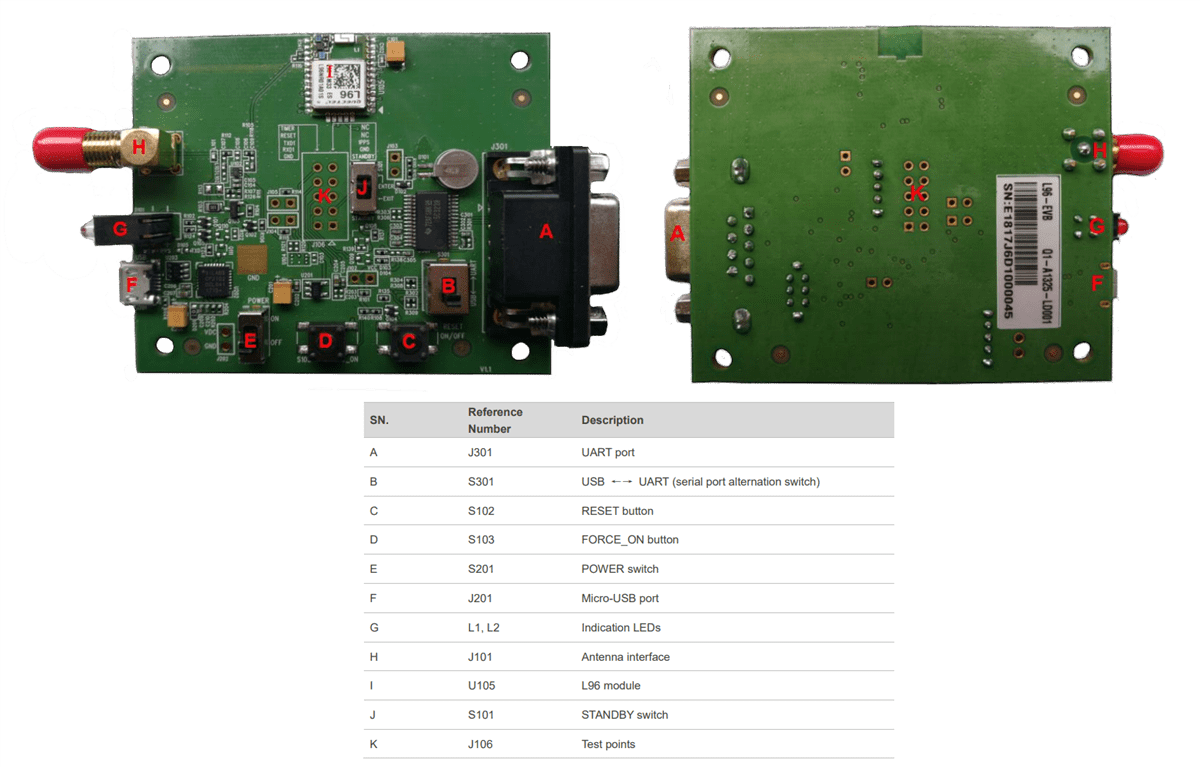

Front & Back View
