Quectel GSM/NB-IoT EVB Kit

Quectel Wireless Solutions GSM/NB-IoT EVB Kit is designed to develop applications based on Quectel GSM, UMTS, and NB-IoT modules. The GSM/NB-IoT EVB Kit offers ease-of-use with many functional interfaces and LEDs to visualize the module’s working status. The Quectel GSM/NB-IoT EVB Kit tests the GSM, UC15, and BC95 modules’ basic functionalities.

Features

Easy to use
Abundant functional interfaces
Human Machine Interaction

Visualization for module’s working status via LEDs
Documentations and tools packaged in one CD

Kit Contents

USB to UART converter cable
USB cable
RF cable
Antenna
5V DC adapter

Earphone
Disk involving related documents and drivers
Instruction sheet of giving instructions for EVB connection, details of EVB accessories, etc.
Bolts and nuts for fixing EVB

Applicable Modules

• Quectel GSM modules
• UC15 module
• BC95 module

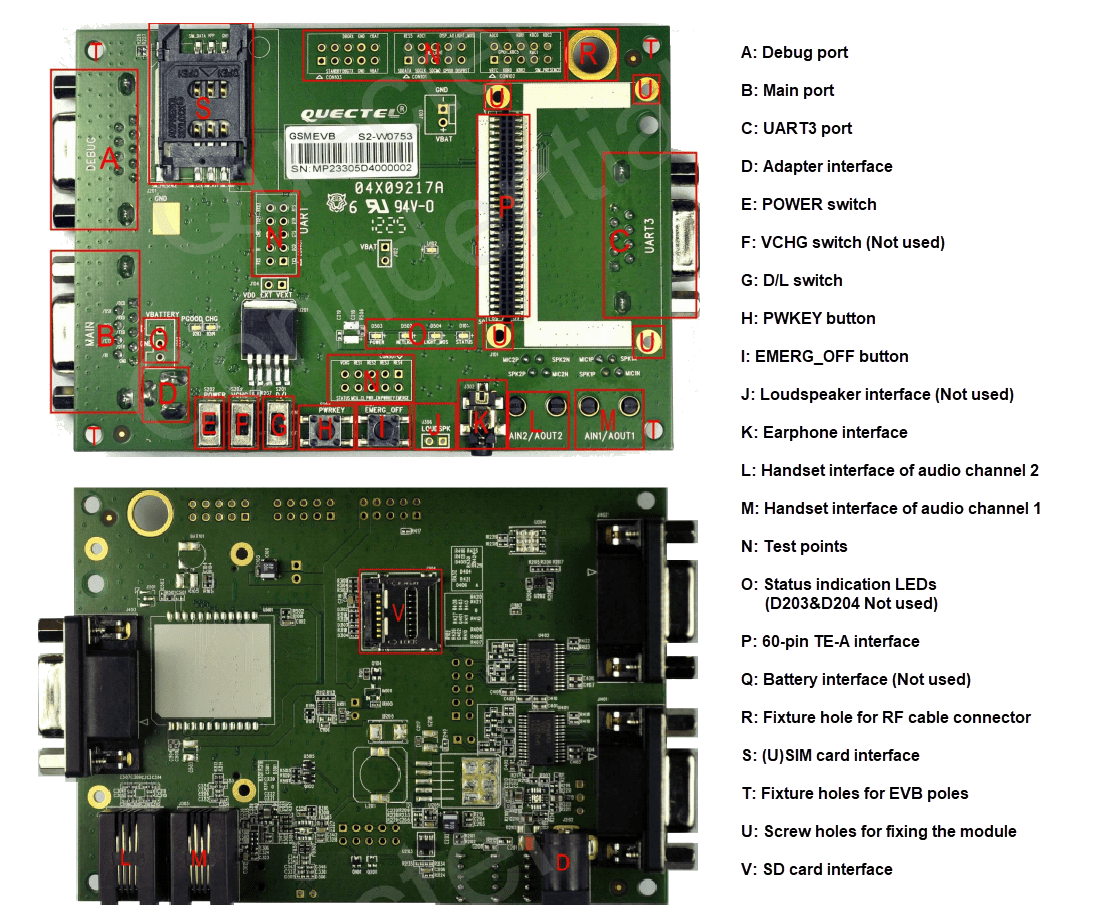

Top & Bottom View

Location Circuit - Quectel GSM/NB-IoT EVB Kit
