Quantic X-Microwave Get On The Grid

Quantic X-Microwave Get On The Grid is part of the X-Microwave System for RF and Microwave design. X-MWblocks revolutionize RF signal chain optimization with drop-in flexibility, negating the need for soldering or cumbersome evaluation board connections. These blocks are complemented by programming tools like the Raspberry Pi Controller, streamlining the design process. The X-MWblocks can be effortlessly moved from prototype plates into standard or custom connectorized housings, eliminating the need for solderless interconnects. The devices can be incorporated into a single PCB for more integrated solutions, replacing spring pins with soldered wires. Miniaturization is also an option, ensuring compatibility with other grid modules.

Features

Simplify RF component evaluation and signal chain design
X-MWblocks offer drop-in flexibility for easy assembly and modification to optimize RF signal chains
No soldering of components or connection of multiple evaluation boards is required
Supporting programming tools like the RasberryPi controller helps to simplify the design process
Easy transition to an integrated microwave assembly for production volume
Spring pins on the bias control boards can be replaced with strain-relieved wires and soldered into place

Move the signal chain as designed on the prototype plate right into a standard or custom connectorized housing

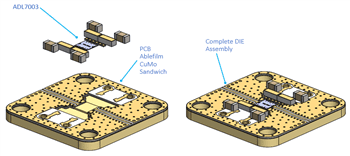

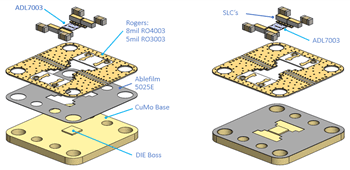

Integration of the X-MWblocks into a single PCB can be easily accommodated, eliminating the solderless interconnects
Miniaturization of the circuits can also be provided if there are size constraints, but the devices are still designed to interface with other modules on the grid
Standard or custom connectorized housings, 3U/6U OpenVPX card assemblies, and rack-mounted systems

Quantic X-Microwave Get On The Grid

Features

Modular Concept

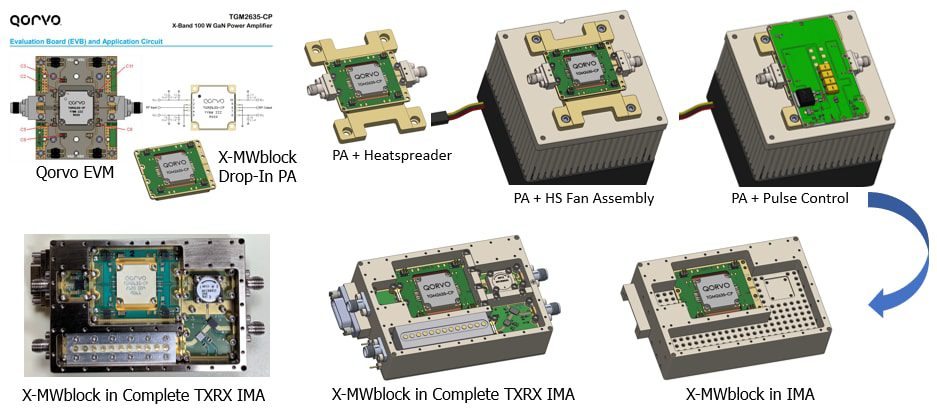

Design Example
