Qualtek Electronics QFWB-20 Wall Mount Power Supplies

Qualtek QFWB-20 Wall Mount Power Supplies offer universal AC input/full range, Energy Efficiency Level VI, and <0.1W No Load power consumption. The Qualtek QFWB-20 Power Supplies are US plugs with 20W output power, short-circuit and overcurrent protections, and 100V_AC to 240V_AC voltage range.

Features

Universal AC input/full range
Energy Efficiency Level VI output
Output protections
- Short-circuit protection (SCP)
- Overcurrent protection (OCP)

20W output power
<0.1W No Load power consumption
One-year warranty

Specifications

5V_DC to 36V_DC output voltage
0.55A to 3.0A rated current
200mV maximum ripple and noise
±5% typical load regulation
0°C to +40°C operating temperature range

100V_AC to 240V_AC voltage range
50Hz to 60Hz frequency range
0.3A maximum AC current
3000V_AC/10mA Primary-Secondary dielectric withstanding

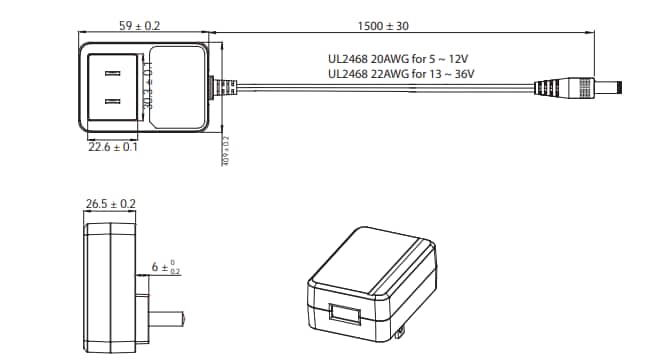

Mechanical Specifications

Chart - Qualtek Electronics QFWB-20 Wall Mount Power Supplies
