Qorvo QPQ5601 Evaluation Board

Qorvo QPQ5601 Evaluation Board evaluates the QPQ5601 Wi-Fi^® U-NII 5 to 8 bandBoost™ Bulk Acoustic Wave (BAW) band-pass filters. This evaluation board is designed to provide performance representative of that obtainable in an actual application. The QPQ5601 evaluation board operates with 50Ω load impedance at all RF ports provided with SMA connector interfaces. The total Printed Circuit Board (PCB) thickness of the evaluation board accounts for 0.062in. Typical applications include access points, wireless routers, residential gateways, customer premise equipment, and IoT.

Features

5945MHz to 7125MHz operating frequency range
Functions with 50Ω load impedances at all RF ports

0.062in PCB thickness
-20°C to 95°C operating temperature range

Applications

Access points
Wireless routers
Residential gateways

Customer premise equipment
Internet of Things (IoT)

Kit Contents

QPQ5601 Wi-Fi^® BAW filter
Printed Circuit Board (PCB)

Qorvo QPQ5601 Evaluation Board

Features

Applications

Kit Contents

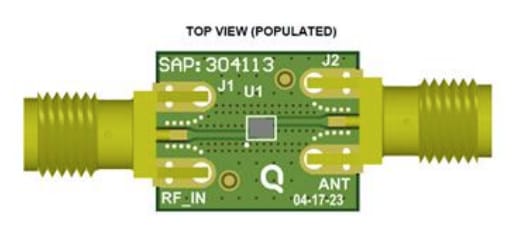

PCB Overview

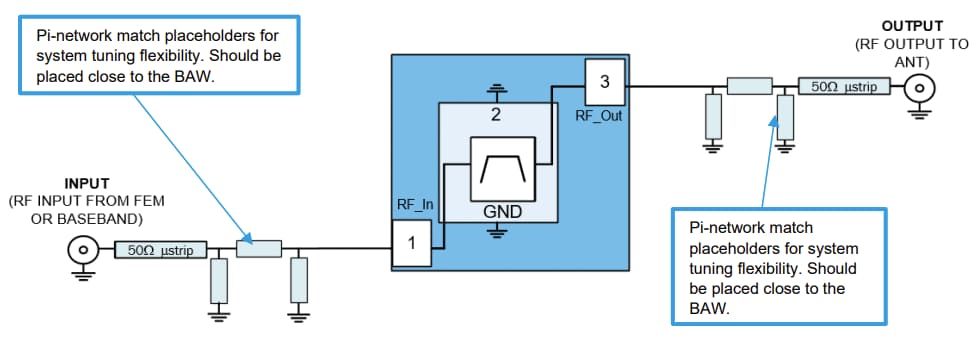

System Architecture Application Circuit Recommendations

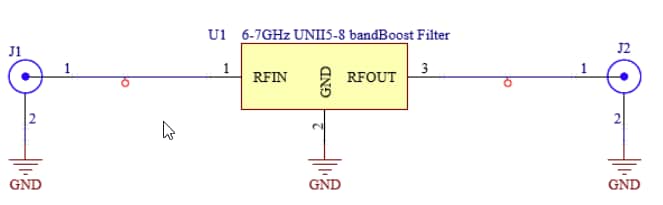

Schematic Diagram
