Qorvo QPQ1298 High-Performance BAW Filter

Qorvo QPQ1298 High-Performance BAW (Bulk Acoustic Wave) Filter is optimized for sub-band 41 uplink and downlink. The QPQ1298 combines extremely low insertion loss with high attenuation making this filter an ideal choice for TDD (Time Division Duplex) macrocells and small cells.

The Qorvo QPQ1298 BAW Filter is housed in a compact 2.0mm x 1.6mm package with a -40°C to +95°C operating temperature range.

Features

Band 41: 160MHz bandwidth
2515MHz to 2675MHz frequency range
High attenuation
Low 2.5dB insertion loss
No external matching required

Excellent Wi-Fi® rejection
Single input, single output operation
-40°C to +95°C operating temperature range
3-pin 2.00mm x 1.60mm x 0.73mm SMT package
RoHS compliant and Pb-free

Applications

Band 41
Base station infrastructure
TDD macrocells
Small cells

Repeaters
Routers
LTE dongles
General purpose wireless

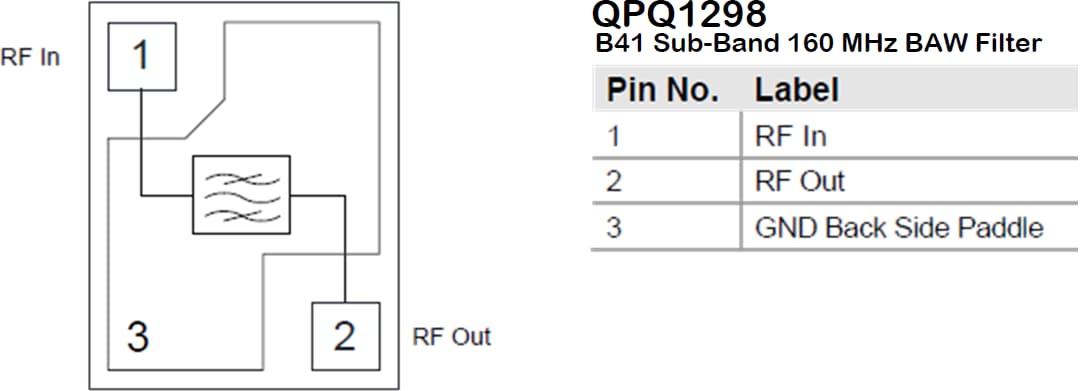

Block Diagram & Pinout

Block Diagram - Qorvo QPQ1298 High-Performance BAW Filter
