Qorvo QPQ1063 L1/L2 Low Loss GPS SAW Diplexer

Qorvo QPQ1063 L1/L2 Low Loss GPS SAW (Surface Acoustic Wave) Diplexer is optimized for the rejection of unwanted GPS signals. The QPQ1063 provides a 21MHz bandwidth for supported bands and features low loss and high isolation. No matching components are required, making PCB design and implementation easy.

The Qorvo QPQ1063 GPS SAW Diplexer is housed in a 5mm x 5mm laminate with an over-mold surface-mount package, allowing for a compact and cost-effective diplexer solution for GPS applications.

Features

Frequency range
- 1,559.92Mhz to 1,590.92Mhz
- 1,212.1Mhz to 1,243.1Mhz
21MHz bandwidth for each band

1.6dB, 1.3dB insertion loss
No matching required for operation at 50Ω
5mm x 5mm x 0.84mm laminate SMP
Lead-free and RoHS compliant

Applications

L1-, L2-Bands
General-purpose GPS
Communication systems

Qorvo QPQ1063 L1/L2 Low Loss GPS SAW Diplexer

Features

Applications

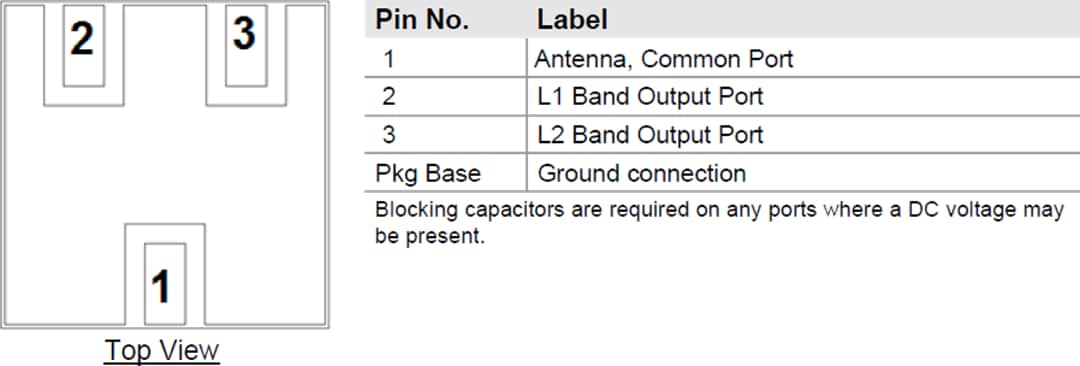

Pin Designations
