Qorvo QPQ1040Q Automotive Band-40 BAW Filter is a high-performance, high-power Bulk Acoustic Wave TX filter designed to meet the strict LTE/NR rejection requirements for use in B40/n40. The QPQ1040Q operates from 2300MHz to 2400MHz and offers excellent Wi-Fi® rejection. The device is specifically designed to meet the high-performance expectations of insertion loss and rejection for LTE/NR transmit systems under all operating conditions in NAD (Network Attached Device) applications.

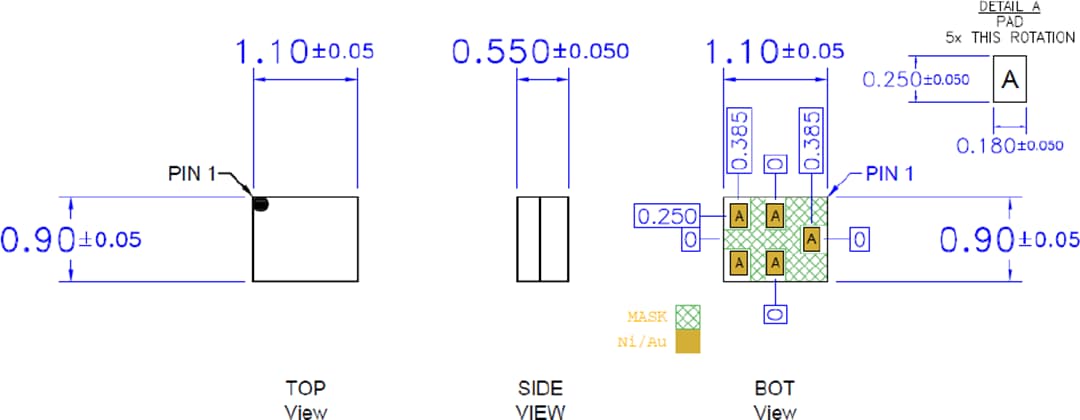

The Qorvo QPQ1040Q Automotive Band-40 BAW Filter is offered in a compact 1.1mm x 0.9mm x 0.55mm package and is AEC-Q200 Grade 3 qualified for automotive applications.
