Qorvo QPL7442PCK-01 Evaluation Board

Qorvo QPL7442PCK-01 Evaluation Board is designed to evaluate the QPL7442 RF amplifier. This QPL7442 amplifier is a low-noise and high-gain single-ended Monolithic Microwave Integrated Circuit (MMIC) RF amplifier. The QPL7442PCK-01 evaluation board is ideally used in set-top-box, cable modem, optical node, home gateways, CATV amplifiers, satellite Low-Noise Amplifier (LNA), and terrestrial TV applications.

Applications

  • Cable, terrestrial, and satellite LNA
  • CATV amplifiers
  • Optical node
  • Cable modem
  • Set-top-box
  • Home gateways
  • Single-ended gain block

Evaluation Board Schematic

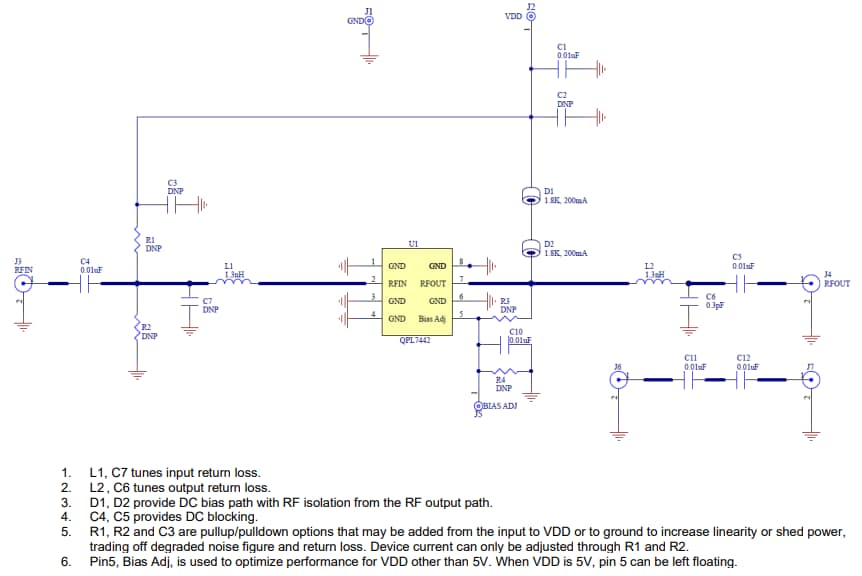

Schematic - Qorvo QPL7442PCK-01 Evaluation Board

Evaluation Board Assembly Drawing

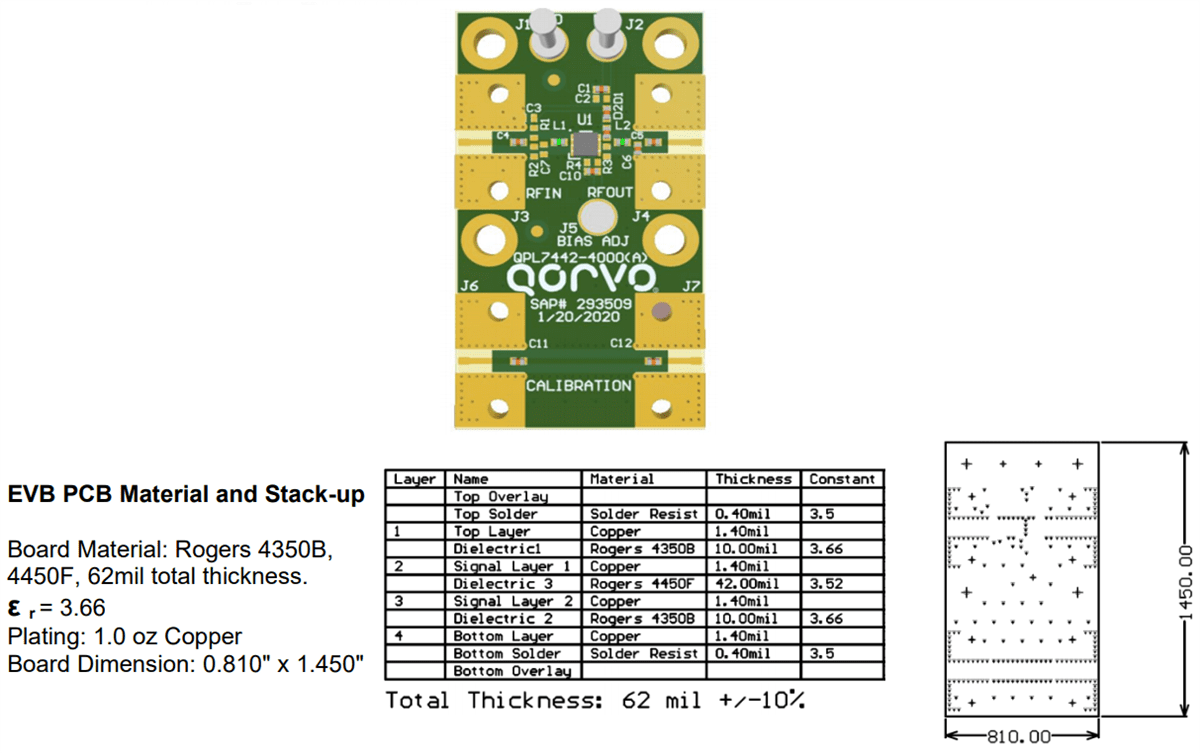

Qorvo QPL7442PCK-01 Evaluation Board

Qorvo QPL7442PCK-01 Evaluation Board
