Qorvo QPL7425EVB Evaluation Boards

Qorvo QPL7425EVB Evaluation Boards feature adjustable bias using external resistors and are RoHS compliant. These evaluation boards are designed for applications upstream from 5MHz to 684MHz and downstream from 47MHz to 1218MHz. The QPL7425EVB evaluation boards offer low noise, distortion, and high gain in a 3 x 3 QFN package for a convenient layout and design. The QPL7425EVB evaluation boards operate at -40°C to 100°C temperature range, 140mA supply current, and 150°C maximum junction temperature. These evaluation boards are ideally used in satellite low-noise amplifiers, cable modems, set-top boxes, and single-ended gain blocks.

Features

Adjustable bias using external resistors
Convenient QFN package
1dB typical noise figure

25dB typical gain
RoHS compliant

Specifications

65dBmV max input level
140mA supply current
10V supply voltage
150°C maximum junction temperature

-65 to 150°C storage temperature range
-40 to 100°C operating temperature range

Applications

Satellite low-noise amplifiers
Cable modems

Set-top boxes
Single-ended gain blocks

Qorvo QPL7425EVB Evaluation Boards

Features

Specifications

Applications

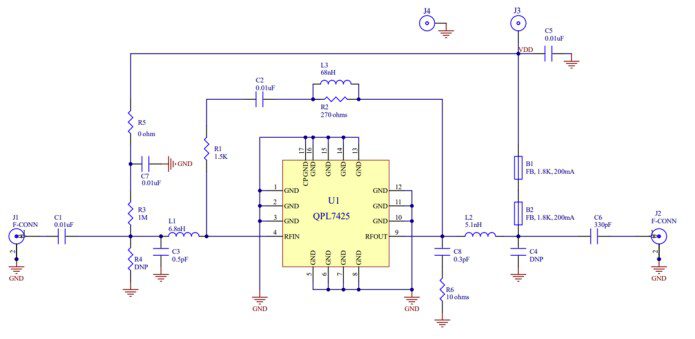

Evaluation Board Schematic Diagram 47MHz to 1218MHz

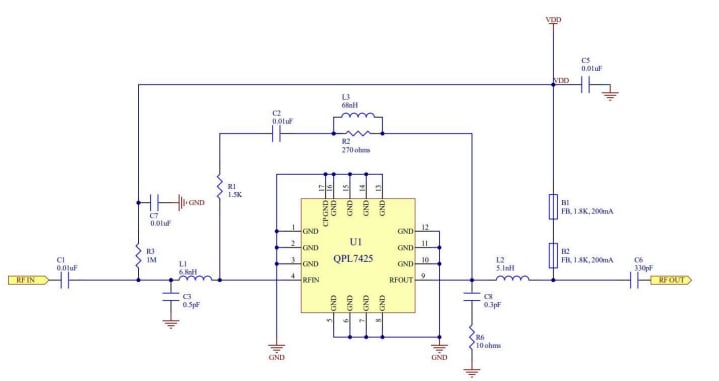

Typical Application Schematic Diagram 47MHz to 1218MHz

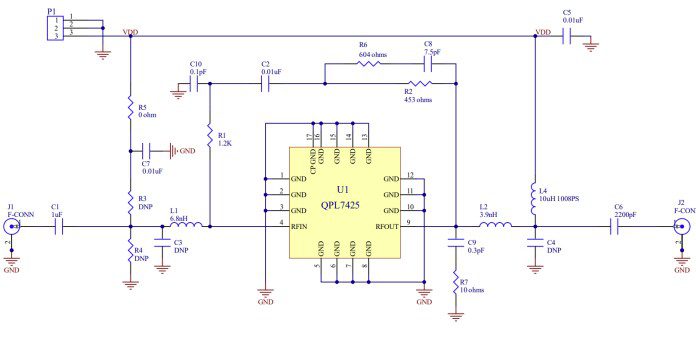

Evaluation Board Schematic Diagram 5MHz to 700MHz
