Qorvo QPL1819 75Ω CATV Amplifier

Qorvo QPL1819 75Ω CATV Amplifier is a GaAs (Gallium Arsenide) pHEMT (Pseudomorphic High-Electron-Mobility Transistor) single-ended MMIC RF amplifier offering up to 20dB of gain and low noise. The QPL1819 features a 50MHz to 1800MHz frequency range, providing an ideal solution for Broadband CATV DOCSIS 4.0 applications, such as nodes, amplifiers, and remote PHY devices, as well as Fiber to The Home (FTTH), home gateways, and cable modems. The device is powered by a single 5V supply at 120mA and provides an output of 58dBmV TCP at a Modulation Error Ratio (MER) of 45dB.

The Qorvo QPL1819 75Ω CATV Amplifier is housed in a 3.0mm x 3.0mm Quad Flat No-Lead (QFN) package ideal for space-constrained designs.

Features

50MHz to 1800MHz frequency range
5V supply voltage
120mA supply current
63dBmV TCP @ 45 MER
20dB gain typical
0.3dB gain slope

1.7dB noise figure @ 50Mhz to 1800MHz
Adjustable bias using external resistors
57°C/W thermal resistance
-40°C to +100°C operating temperature range
3.0mm x 3.0mm QFN-16 package
Lead-free, halogen-free, and RoHS compliant

Applications

DOCSIS 4.0 amplifiers
DOCSIS 4.0 optical nodes
DOCSIS 4.0 remote PHY devices

FTTH GPON and GEPON
DOCSIS 4.0 cable modems and home gateways
Single-ended gain blocks

Qorvo QPL1819 75Ω CATV Amplifier

Features

Applications

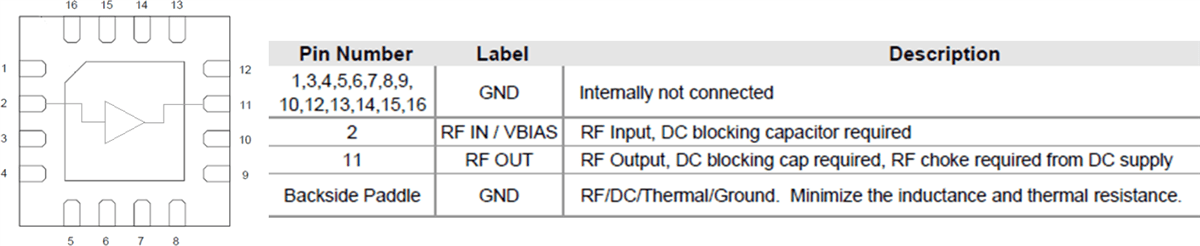

Block Diagram & Pinout

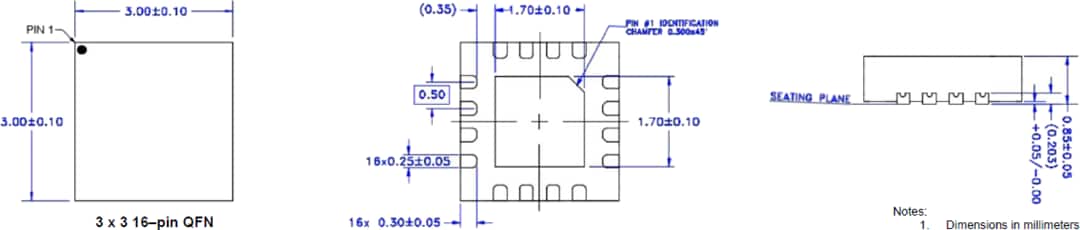

Package Outline
