Qorvo QPL1812EVB Evaluation Board is a demonstration and development platform for the QPL1812 Single Ended Amplifier. The QPL1812 is a 75Ω CATV amplifier with a high gain of 19dB, high linearity, and low distortion from 50MHz to 1800MHz. The Qorvo QPL1812EVB-01 Evaluation Board is ideal for broadband cable applications.

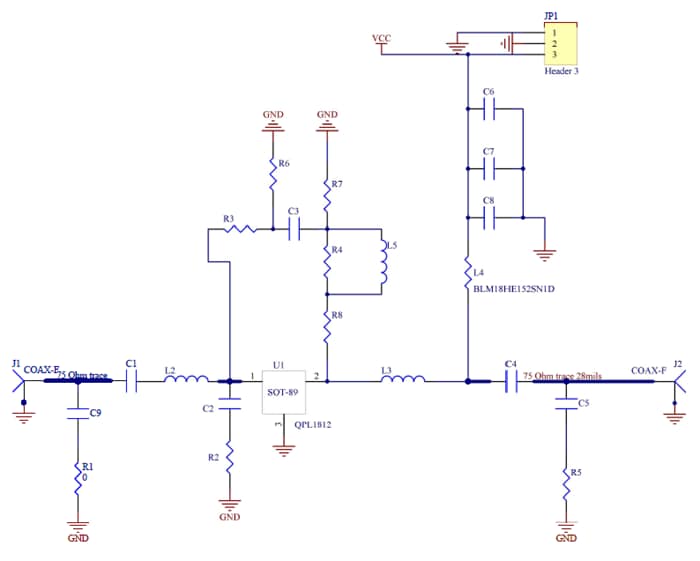

The QPL1812EVB Evaluation Board features a pre-mounted Qorvo QPL1812 in a SOT-89 package. The Evaluation Board provides an example application circuit, allowing rapid prototyping when incorporated into existing designs.
