Qorvo QPL1163EVB Evaluation Boards

Qorvo QPL1163EVB Evaluation Boards evaluates the performance of the QPL1163 GaAs pHEMT 75Ohm differential amplifier IC. The Qorvo QPL1163EVB provides a convenient platform to test and optimize the performance of the QPL1163 in real-world scenarios. The board is an essential tool to harness the full potential of the QPL1163 amplifier IC.

Features

Convenient platform for evaluating and testing the QPL1163
5-1218MHz operating bandwidth
19dB of gain
Differential push-pull topology

Essential tool for optimizing system performance
User-friendly design and interface
Onboard power supply and signal routing
Compact and portable form factor

Applications

DOCSIS downstream and upstream
Low-noise balanced amplification
Wireless communications systems
CATV network infrastructure
Broadband data transmission
Fiber optic systems

Test and measurement equipment
Semiconductor testing and characterization
Radiofrequency (RF) and microwave systems
Professional audio and video applications
Scientific research and experimentation
Aerospace and defense systems

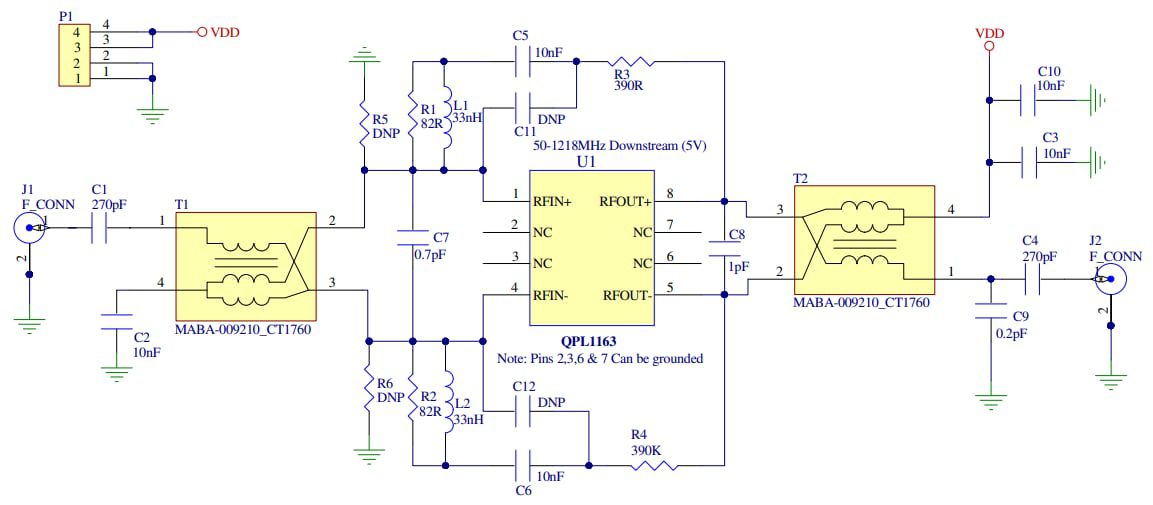

Schematic

Schematic - Qorvo QPL1163EVB Evaluation Boards
