Qorvo QPC8020Q SP4T RFFE GSM High Power Switch

Qorvo QPC8020Q SP4T RFFE GSM High Power Switch is optimized for GSM, CDMA, WCDMA, and LTE applications requiring high linearity and high power handling. The QPC8020Q is packaged in a compact 1.1mm x 1.1mm, 9-pin module. This allows for a small solution size with no need for external DC blocking capacitors when no external DC is applied to the device ports.

Features

Qualified to AEC-Q100 Grade 2
Low Insertion Loss
High Port-to-Port Isolation
RFFE 2.0 compatible (52MHz Write speed)
Capable of 1.8V operation

Usable up to 6GHz
HBM Rating > 1kV on all ports
Compact size: 1.1mm x 1.1mm x 0.44mm
DC blocking capacitors are not required in typical applications

Applications

Telematics Modules
Cellular Technology Applications
Multi-Mode GSM, EDGE, WCDMA, and LTE Applications

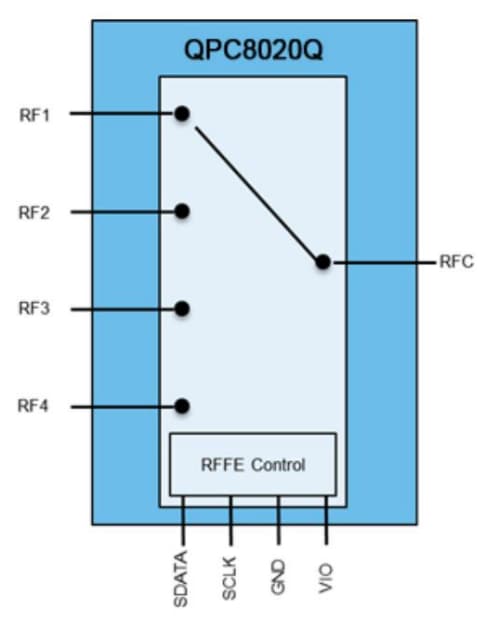

Block Diagram

Block Diagram - Qorvo QPC8020Q SP4T RFFE GSM High Power Switch
