Qorvo QPC8018Q SP5T Switches

Qorvo QPC8018Q SP5T Switches offer low loss, and high isolation with performance optimized for LTE and diversity applications. The QPC8018Q is packaged in an ultra-compact 1.1mm x 1.9mm x 0.44mm, 13-pin, Module package. This package allows for a small solution size with no need for external DC blocking capacitors.

Features

Qualified to AEC-Q100 Grade 3
Excellent insertion loss and isolation performance
- 0.32dB Typ IL, Band 5
- 48dB Typ Isolation, Band 5

Multi-Band operation from 600MHz to 6000MHz
RFFE 2.0 compatible
DC blocking capacitors are not required in typical applications

Applications

Automotive telematics modules
LTE and diversity

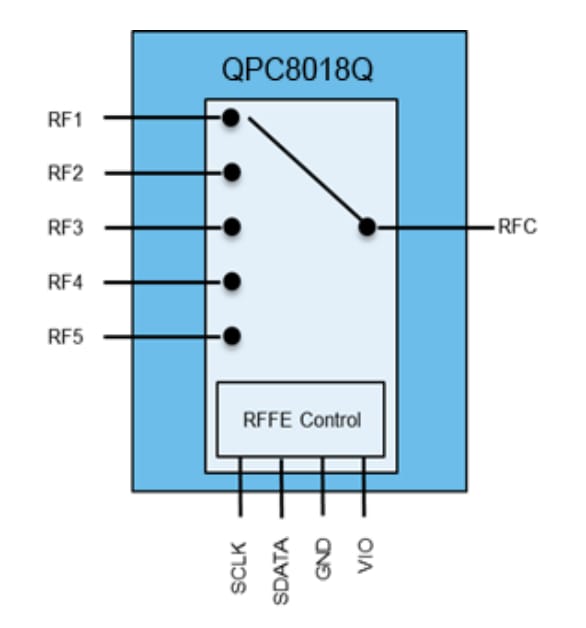

Block Diagram

Block Diagram - Qorvo QPC8018Q SP5T Switches
