Qorvo QPA3245 CATV Hybrid Power Doubler Amplifier

Qorvo QPA3245 CATV Hybrid Power Doubler Amplifier operates from 45MHz to 1218MHz and delivers a 25dB gain. The QPA3245 features an excellent MER (Modulation Error Ratio) and adjustable bias. The device has a 24V voltage and a 475mA current rating.

The Qorvo QPA3245 CATV Hybrid Power Doubler Amplifier is available in a hybrid SOT-115J package and is halogen-free, lead-free, and RoHS compliant.

Features

  • 45MHz to 1218MHz frequency range
  • 25dB gain
  • 24V voltage rating
  • 475mA current rating
  • Hybrid SOT-115J package
  • Halogen-free, lead-free, and RoHS compliant

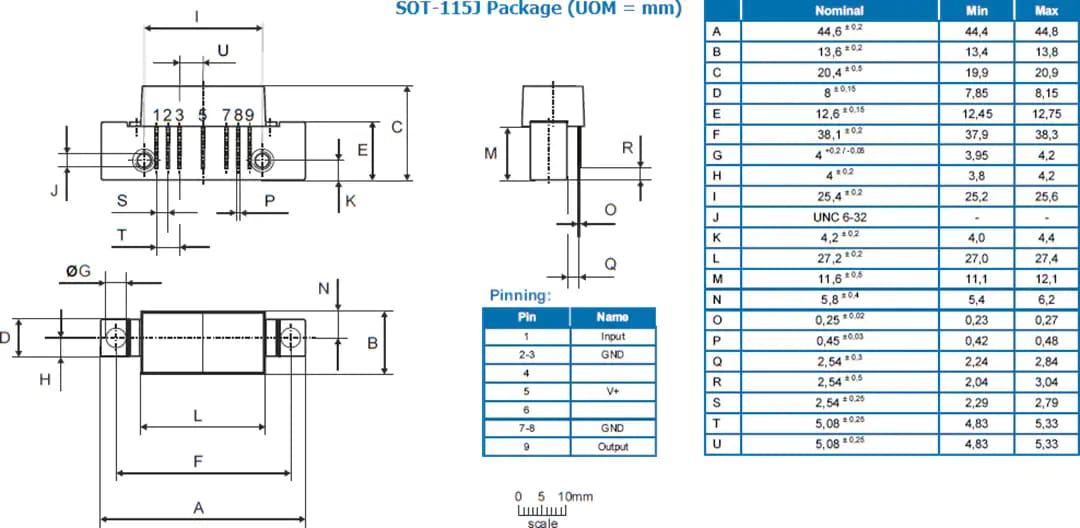

Package Outline

Mechanical Drawing - Qorvo QPA3245 CATV Hybrid Power Doubler Amplifier
