Qorvo QPA2225 28-38GHz 0.4W GaN Driver Amplifier

Qorvo QPA2225 28-38GHz 0.4W GaN Driver Amplifier is fabricated with Qorvo’s 0.15um GaN on SiC process (QGaN15). The amplifiers cover 28–38GHz and provide> 0.4W of saturated output power with >22dB of small-signal gain. The QPA2225 dimensions are 4mm x 3mm x 2mm. It can support a variety of operating conditions to support system requirements. With good thermal properties, it can support a range of bias voltages.

Features

  • Frequency range 28 –40GHz
  • Power (Pin = 14 dBm) 26dBm
  • Large signal gain (Pin = 14dBm) 12dB
  • Small signal gain 22dB
  • IM3 (Pout / Tone = 20 dBm) -20dBc
  • Bias VD = +20 V, IDQ = 64mA, VG = – 2.5V typ.
  • Package dimensions 4mm x 3mm x 2mm

Applications

  • Wide band communications
  • Radar
  • Satellite communications
  • Electronic warfare

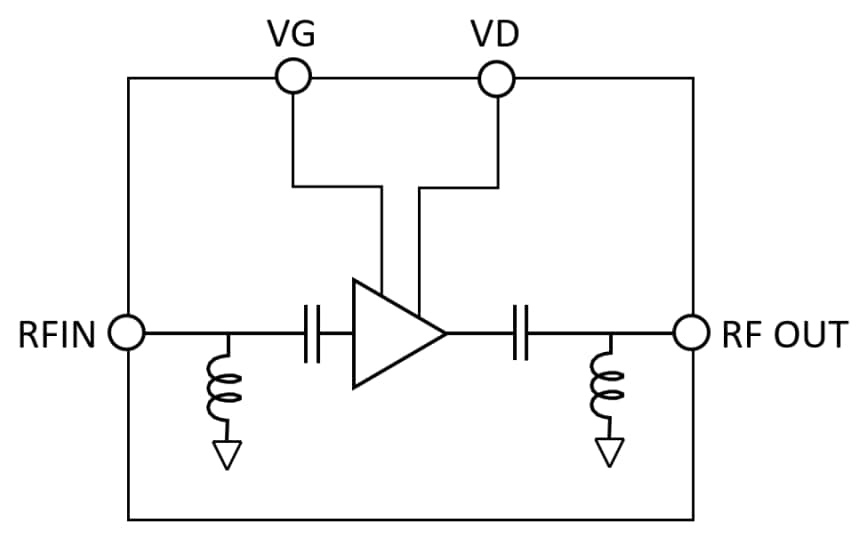

Block Diagram

Qorvo QPA2225 28-38GHz 0.4W GaN Driver Amplifier
