Qorvo PAC22140 Evaluation Kit (PAC22140EVK1)

Qorvo PAC22140 Evaluation Kit evaluates the PAC22140 device but also develops a battery management solution revolving around this powerful and versatile Arm® Cortex®-M0 based microcontroller. The Qorvo PAC22140 module contains a PAC22140 Power Application Controller® (MCU) and all the necessary circuitry to properly energize the MCU and its internal peripherals once power is applied.

Features

PAC22140 Smart Battery Monitoring System (BMS) monitors 10-series to 20-series Li-Ion, Li-Polymer, and LiFePO4 battery packs
Single supply 145V input buck DC/DC controller used to generate gate drive voltages for external charge and discharge FETs and external FUSE FET, as well as all the sub-regulators required for the MCU and other sub-systems

High-side gate drivers for a charge and discharge FET and a low-side driver to blow a battery pack fuse
Single-IC PAC22140 with configurable PWM outputs, ADC inputs, SMB/I²C, UART, SPI communication ports, and GPIO

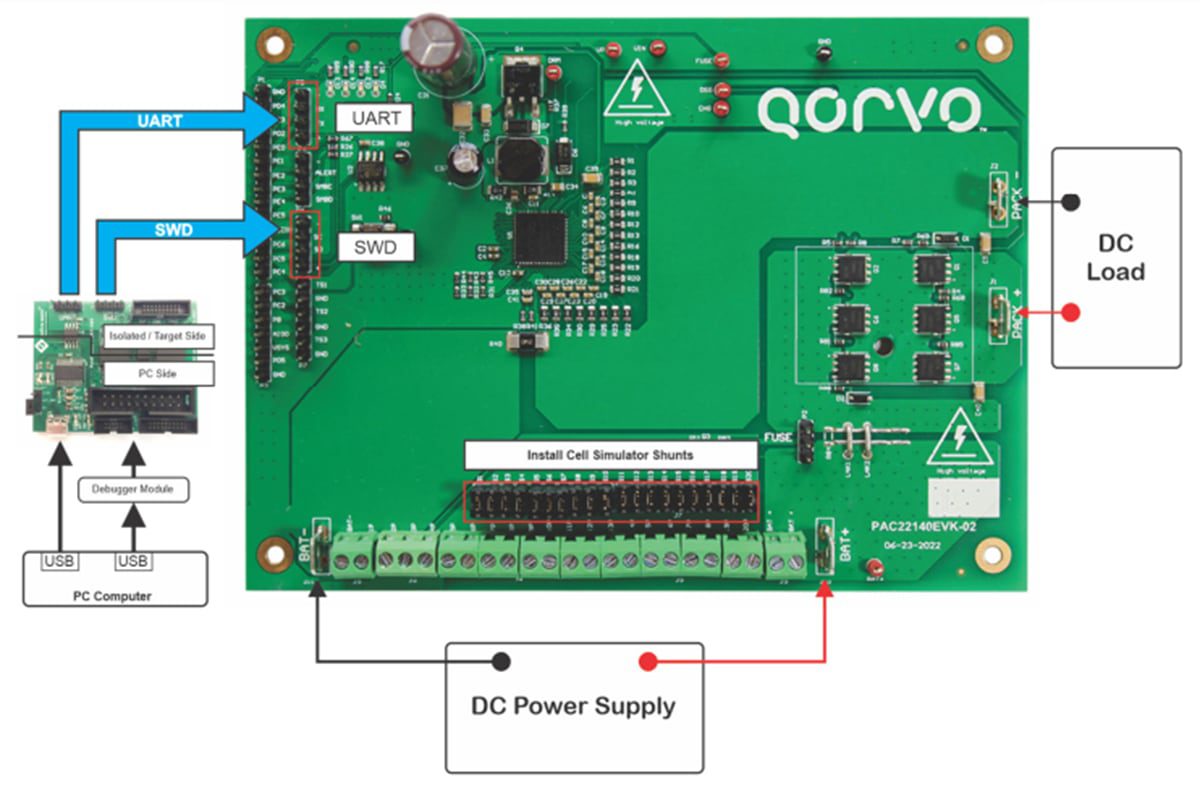

Resistor cell simulator for quick setup with only a power supply
Schematics, BOM, and layout drawings are available
