Qorvo DWM3001CDK Development Kit

Qorvo DWM3001CDK Development Kit is a development board for the DWM3001C fully integrated (UWB) transceiver module. The kit can evaluate hardware performance as a TWR or TDoA Tag, and build an evaluation real-time location system (RTLS). An on-board J-Link debugger provides SWD and UART interfaces to the DWM3001C.

Features

Convenient kit for evaluation of DWM3001C UWB module
J-Link on board for debugging and flashing via USB
USB port for direct connection to DWM3001C USB interface
26-pin Raspberry Pi compatible header
Reset and user-defined buttons and LEDs
Access to all DWM3001C GPIOs and interfaces
Measure module current via the header on VCC trace
Supports UWB RF bands 5 (6.5GHz) and 9 (8GHz)

nRF52833 Soc with BLUETOOTH® 5.2
Two integrated antennas for BLE and UWB
IEEE 802.15.4-2015 and IEEE 802.15.4z BPRF compliant
Software development with free-to-use IDE and debugger
Fully aligned with FiRa™ PHY, MAC, and certification development
Works with Apple Nearby Interaction software
Software suite compliant with FiRa PHY/MAC specification

Applications

Evaluation of hardware performance as tag or anchor
Building block for low power TWR and TDoA RTLS systems

Qorvo DWM3001CDK Development Kit

Features

Applications

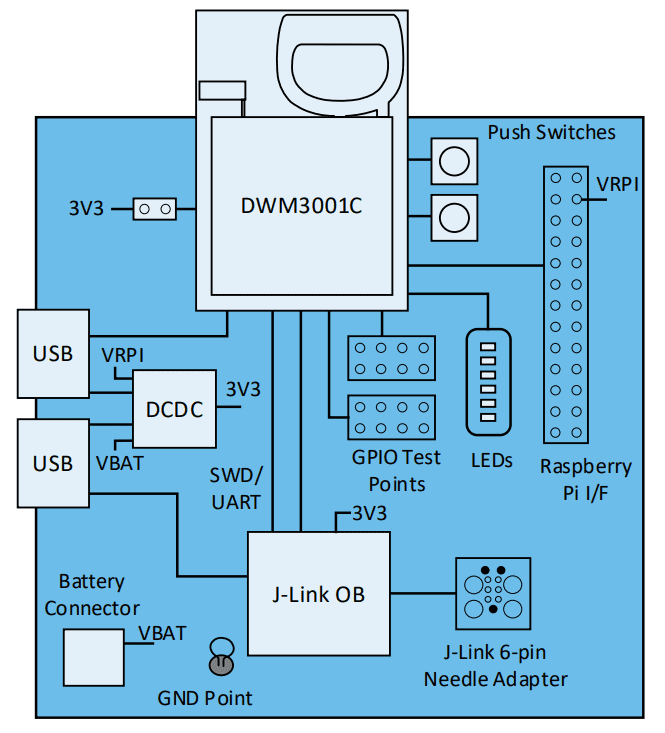

Block Diagram
