Qorvo DWM3001C 6.5GHz & 8.0GHz Ultra-Wideband Module

Qorvo DWM3001C 6.5GHz and 8.0GHz Ultra-Wideband (UWB) Module is a fully integrated UWB transceiver module based on the Qorvo DW3110 IC. The DW3110 IC integrates an nRF52833 MCU, planar UWB antenna, accelerometer, power management, and crystal. The RF design is fully validated, tested, and calibrated. Low power consumption allows powering from batteries for extended periods, providing cost-effective implementation of UWB solutions.

Features

IEEE 802.15.4-2015 and IEEE 802.15.4z BPRF compliant
Fully aligned with FiRa™ PHY, MAC, and certification development
Supports Channels 5 (6.5GHz) and 9 (8GHz)
FCC, SRRC, and ETSI certification (planned)
Nordic nRF52833 SoC with BLE transceiver
2.5V to 3.6V Supply voltage VCC
BLUETOOTH® chip antenna
AES 128/256 Security block

Fully coherent receiver for maximum range and accuracy
Power consumption optimized for battery applications
Data rates of 850kbps, 6.8Mbps
Maximum packet length of 1023 bytes for high data throughput applications
Integrated MAC support features
Backward compatible with the DWM1001C module
Temperature range of -40°C to +85°C

Applications

Precision real-time location systems (RTLS) using two-way ranging or TDoA schemes in a variety of markets
Location-aware wireless sensor networks (WSNs)

Qorvo DWM3001C 6.5GHz & 8.0GHz Ultra-Wideband Module

Features

Applications

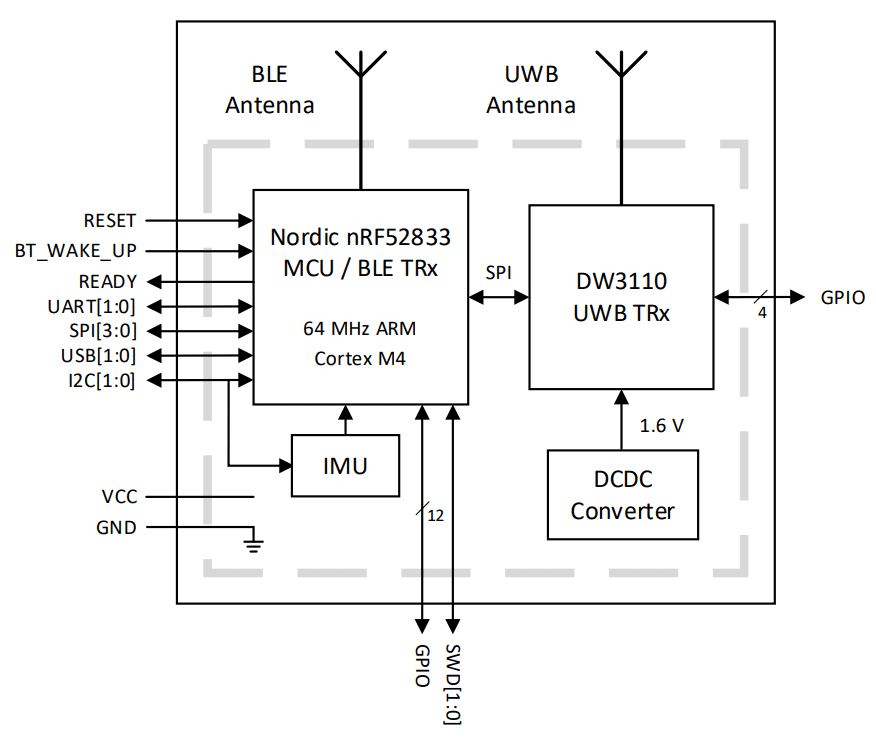

Block Diagram
