Qorvo ACT88329EVK1-101 Evaluation Kit

Qorvo ACT88329EVK1-101 Evaluation Kit facilitates the evaluation of the ACT88329 Advanced PMICs. The ACT88329 Advanced PMICs offers three bucks, two LDOs, and load bypass switches in an integrated ActiveCiPSTM power management integrated circuit.

The Qorvo ACT88329EVK1-101 Evaluation Kit can be used as a standalone board if required. The ACT88329EVK1-101 Kit must connect to a PC using Qorvo’s USB-TO-I²C interface dongle and GUI software to access the internal registers and take full advantage of the IC’s capability. The Evaluation Kit provides complete access to each converter’s input and output voltage and all the digital control signals. This access allows the user flexibility to configure the ACT88329EVK1-101 Kit to match their real-world system.

Required Equipment

ACT88329 EVK
USB-TO-I²C Dongle
Power supply: 3.3V @ 4A for full power operation
Oscilloscope: >100MHz, >2 channels

Loads – Electronic or resistive, 3A minimum current capability
Digital Multi-meters (DMM)
Windows compatible computer with spare USB port

Qorvo ACT88329EVK1-101 Evaluation Kit

Required Equipment

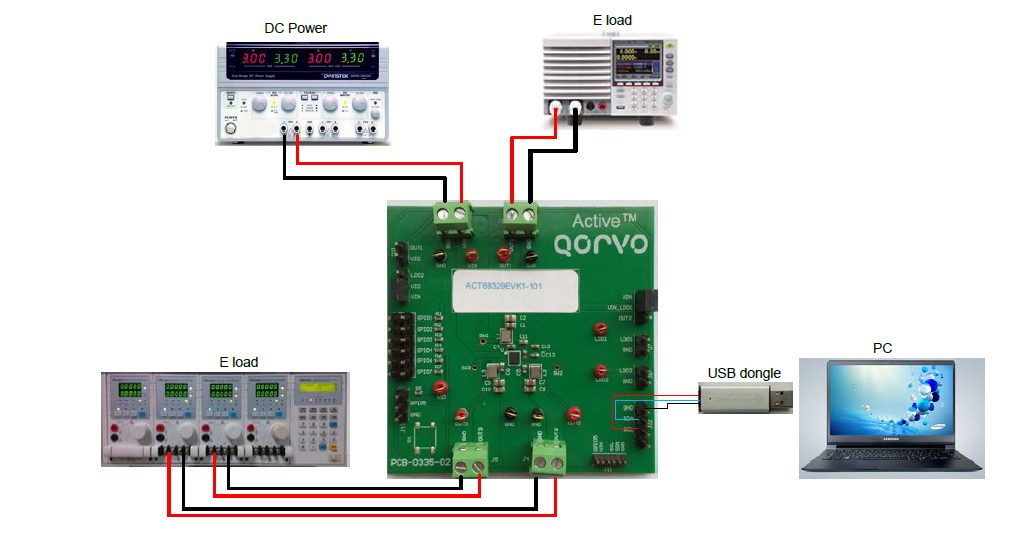

Setup
