Pulse Electronics Rogowski RC01/03/05 Coil Current Sensors

Pulse Electronics Rogowski RC01/03/05 Coil Current Sensors are available in 3 different sizes with a wide dynamic current ranging from 1A to 2500A. These sensors feature up to 50kHz bandwidth, 100mV/kA to 600mV/kA sensitivity range, <0.03 degree at 50Hz/60Hz phase error, and meet ANSI C12.20 accuracy class 1.0. The RC01/03/05 sensors also feature low-temperature dependency, immune to external AC magnetic fields and DC current. These sensors are ideal for measuring and billing applications for alternating current such as smart grids and smart metering.

Features

Meets ANSI C12.20 accuracy class 1.0
Phase error <0.03 degree at 50Hz/60Hz
Immune to external AC magnetic fields
Immune to DC current and magnetic fields
Three different sizes are available
Sensitivity from 100mV/kA to 600mV/kA
Optional shielding to reduce capacitive influences significantly

Meets IEC 61869-10 accuracy class 1
Size 1 also available with accuracy class 0.5 for metering application
Wide dynamic current ranging from 1A to 2500A
High bandwidth up to 50kHz
-20°C to 80°C operating temperature range
No nonlinear effects due to non-magnetic core
Low-temperature dependency

Pulse Electronics Rogowski RC01/03/05 Coil Current Sensors

Features

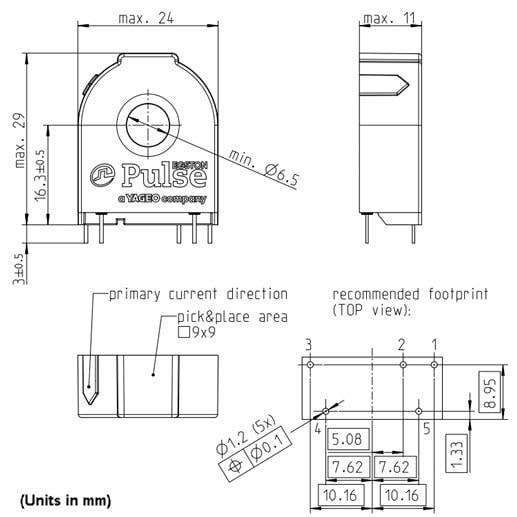

RC01-SSS-0 Dimension Diagram

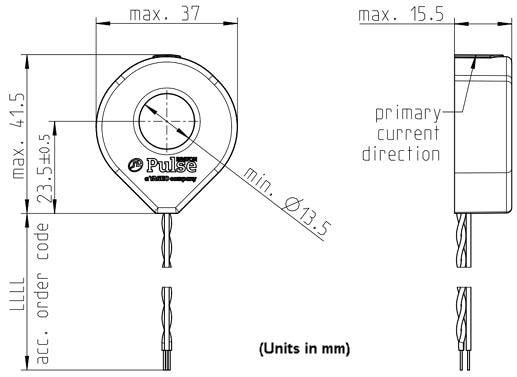

RC03-SSS-LLLL-0 Dimension Diagram

RC05-SSS-LLLL-0 Dimension Diagram
