Pulse Electronics High Q RF Chip Inductors

Pulse Electronics High Q RF Chip Inductors offer a minimum Q (Quality Factor) rating of 20, 0.6nH to 22nH inductance range, and 1.1A maximum rated current. These inductors support miniaturized devices and feature low inductance and high precision. The higher Q ratings allow easy impedance matching at both RF and IF circuits and compact high-frequency circuit designing. Pulse Electronics High Q RF Chip Inductors are suitable for BLUETOOTH®, WLAN, UWB, digital TV tuners, and high-frequency circuit and module applications.

Features

Film type
Excellent high-frequency application
High Q factor

Miniaturization
Tight tolerance

Applications

RF matching circuits requiring Q value
Bluetooth
WLAN

UWB
Digital TV tuners
High-frequency circuits and modules

Specifications

≥20 Q rating
0.6nH to 22nH inductance range
1.1A maximum rated current

500MHz test frequency
0.6mm x 0.3mm x 0.4mm dimensions

Pulse Electronics High Q RF Chip Inductors

Features

Applications

Specifications

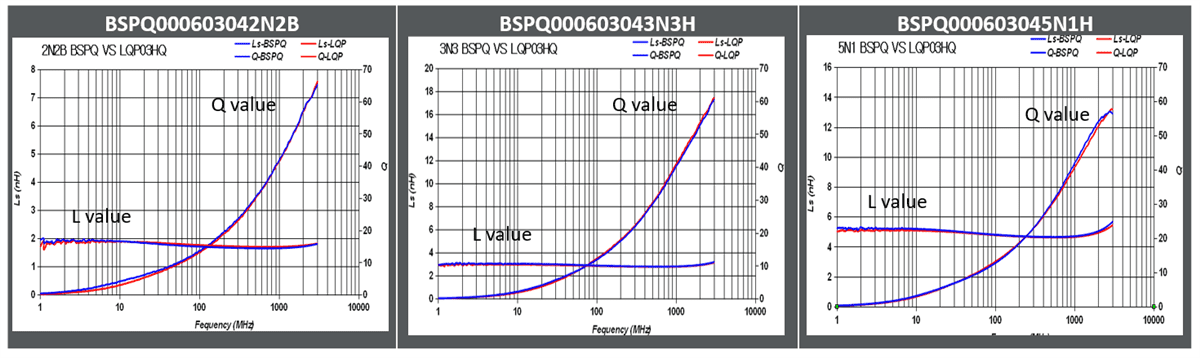

How to Realize a High-Q RF Chip Inductor

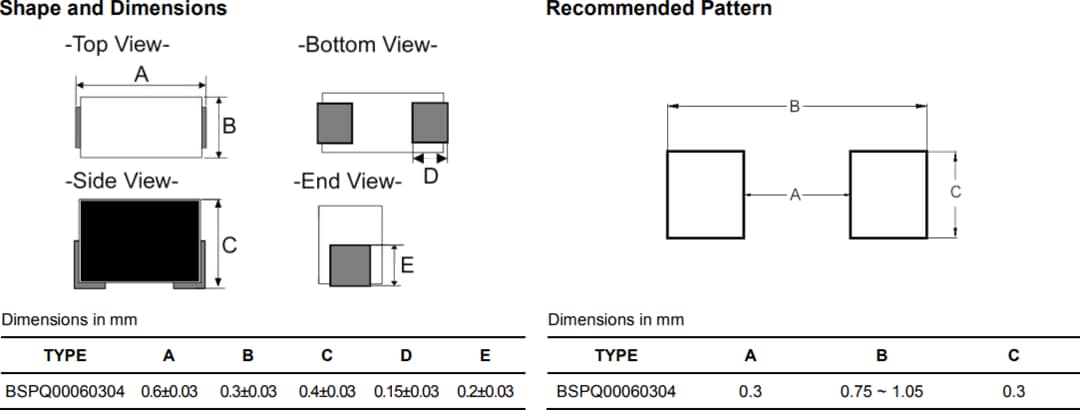

Package Outline
