Pulse Electronics High-Frequency Flat Coil Inductors

Pulse Electronics PGL6459HLT and PGL6704.222HLT High-Frequency Flat Coil Inductors feature two inductors with a coiled-core design, which reduces magnetic field leakage. The PGL6459HLT and PGL6704.222HLT series inductors provide improved shielding over conventional chip inductors. The inductors offer high current inductance and high frequency within a -40°C to +125°C operating temperature range. Pulse Electronics PGL6459HLT and PGL6704.222HLT High-Frequency Flat Coil Inductors are RoHS compliant and available in tape and reel packaging.

Features

13.5mm max height
19mm x 17mm footprint
Tape and reel packaging

-40°C to +125°C operating temperature range
RoHS compliant

Specifications

PGL6459HLT
- 2.2μH inductance rating at 0Adc
- 1.3μH min inductance rating at Isat
- 22ADC Irated
- 1.7mΩ max DCR
- 22A typical saturation current at 25°C
- 15A typical saturation current at 125°C
- 30ADC heating current
- 40nH max leakage inductance

PGL6704.222HLT
- 2.2μH inductance rating at 0Adc
- 1.54μH min inductance rating at Isat
- 16ADC Irated
- 1.6mΩ max DCR
- 16A typical saturation current at 25°C
- 12A typical saturation current at 125°C
- 34ADC heating current
- 40nH typical leakage inductance

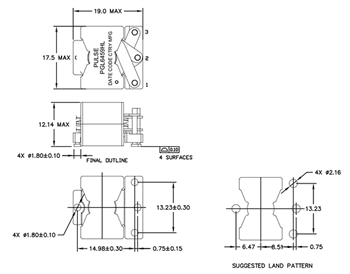

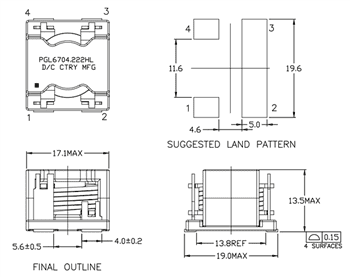

Mechanical Drawings

Chart - Pulse Electronics High-Frequency Flat Coil Inductors

Pulse Electronics High-Frequency Flat Coil Inductors

Features

Specifications

Mechanical Drawings

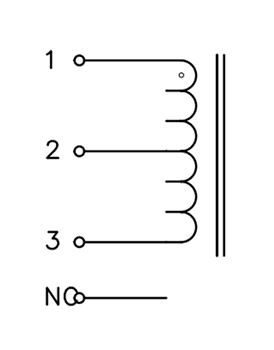

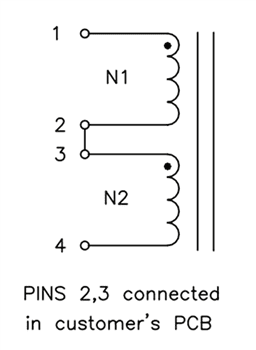

Schematics
