pSemi UltraCMOS® Digitally Tunable Capacitors

pSemi UltraCMOS® Digitally Tunable Capacitors (DTCs) are DuNE™ technology-enhanced devices designed to support various tuning circuit topologies with emphasis on impedance matching and aperture tuning applications. pSemi UltraCMOS DTCs offer high RF power handling and ruggedness while meeting challenging harmonic and linearity requirements. These devices are controlled through the widely supported 3-wire (SPI compatible) interface. All decoding and biasing are integrated on-chip, and no external bypassing or filtering components are required.

Peregrine DuNE technology enables excellent linearity and exceptional harmonic performance. DuNE devices deliver performance superior to GaAs devices with the economy and integration of conventional CMOS. With built-in bias voltage generation and ESD protection, DTC products provide a monolithically integrated tuning solution for demanding RF applications.

Features

100MHz to 3000MHz frequency range
DuNE technology-enhanced
3-wire (SPI) compatible serial interface with built-in bias voltage generation and ESD protection
Wide power supply range and low current consumption
High RF power handling and linearity

High ESD tolerance
Package options
- QFN10 (2.0mm x 2.0mm x 0.5mm)
- QFN12 (2.0mm x 2.0mm x 0.55mm)

Applications

Antenna tuning
Tunable filters

Phase shifters
Impedance matching

Specifications

SPI interface
100MHz to 3000MHz operating frequency range
0.60pF to 14pF shunt capacitance

6V_PK to 30V_PK peak operating voltage
2.3V to 3.6V or 4.8V V_DD range
1500V or 2000V ESD HBM

pSemi UltraCMOS® Digitally Tunable Capacitors

Features

Applications

Specifications

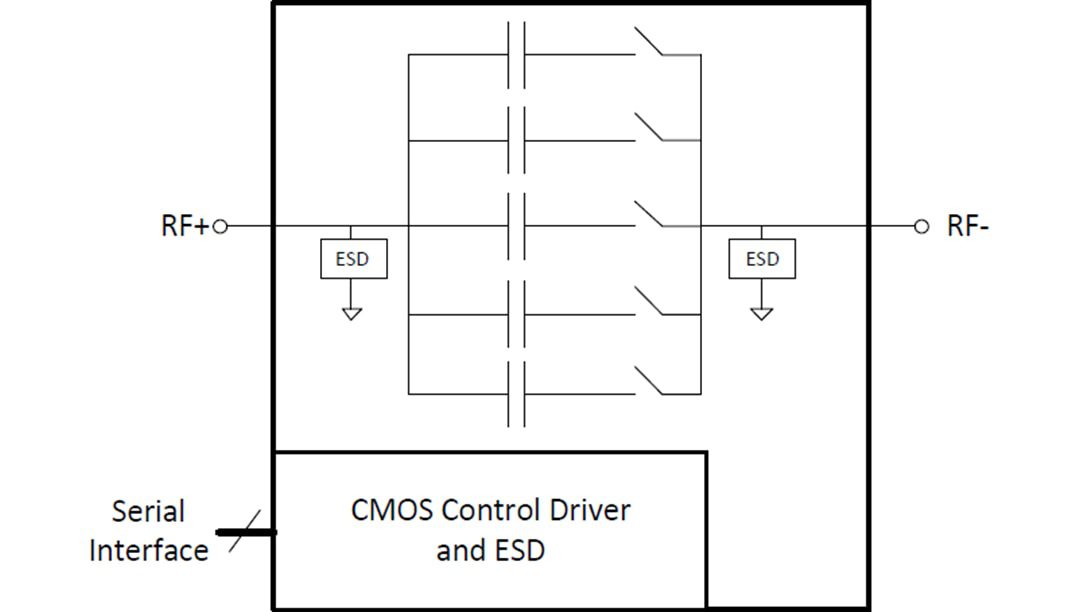

Typical DTC Block Diagram
