Preci-Dip 811/813-CLIP Spring Loaded Muli-Finger Clips

Preci-Dip 811/813-CLIP Spring Loaded Muli-Finger Clips are multi-finger pogo pins are designed to quickly make contact with other circuit boards or moving parts. These clip assemblies of pogo pins enable the connection of loose tolerances, off-axis, and various other imperfect or moving elements. These connections feature multiple length configurations, a 20mΩ contact resistance, a 5A maximum current rating per contact, as well as single-row and dual-row configurations. Preci-Dip 811/813-CLIP Spring Loaded Muli-Finger Clips utilize a 1.58mm diameter press-in mount, and a 20,000 cycle durability.

Features

Single-row and dual-row configurations in various lengths
Multiple pogo pins on a single assembly
Accepts important positioning tolerances of the connectors
Connects surfaces non-perpendicular to the contact axis

Compensates errors of parallelism and flatness
Connects pivoting or rotating elements
Connects with sliding mating action (push & lock)
Suitable for blind mating

Specifications

5A max operating current
20mΩ dynamic contact resistance
-55°C to +125°C operating temperature

20,000 cycle durability
1.83mm diameter hole insulator press-in mount

Preci-Dip 811/813-CLIP Spring Loaded Muli-Finger Clips

Features

Specifications

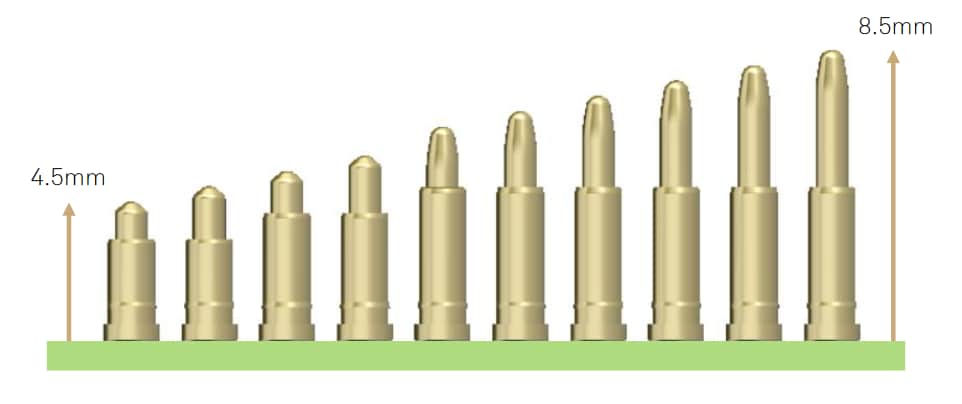

Various Pin Length Options
