Positronic SGMC Mini-Rectangular Connectors

Positronic SGMC Mini-Rectangular Connectors are designed for rack and panel applications. These high-density connectors feature size 22 contacts with 4 to 104 fixed contacts. The SGMC connectors are available in multiple terminations options, including crimp, solder cup, straight solder, and compliant press-in printed board mount. These connectors feature high reliability and a range of polarization and connector coding (keying) options. The SGMC connectors are intermateable with both the SGM and SMPL series. These connectors are used in military, aerospace, defense, medical, industrial, energy, and test and measurement applications.

Features

High-reliability connectors with fixed contacts
High-density size 22 contacts
Terminations include crimp, solder cup, straight solder, and compliant press-in printed board mount
Female closed-entry contacts utilize the PosiBand system
Current ratings: signal level to 13A
11 connector variants, 4 to 104 contacts
Multitude of polarization and connector coding (keying) options

Intermateable with SGM and SMPL series
Ideal for rack and panel applications
Thermocouple contact options available
Wide variety of options and accessories
Connectors conform to DSCC Drawing No. 86040 and 86078, and MIL-C-28748/13 and 28748/14
Contacts conform to SAE AS39029/34 and 39029/35m and UL E49351

Specifications

5GΩ insulator resistance
2200V_rms proof voltage
250Vrms working voltage
4mΩ maximum initial contact resistance

5A contact current rating
Lead-free solder process 1
-55°C to +135°C operating temperature range

Applications

Military
Aerospace and defense
Medical

Industrial
Energy, oil, and gas
Test and measurement

Positronic SGMC Mini-Rectangular Connectors

Features

Specifications

Applications

Connector Details

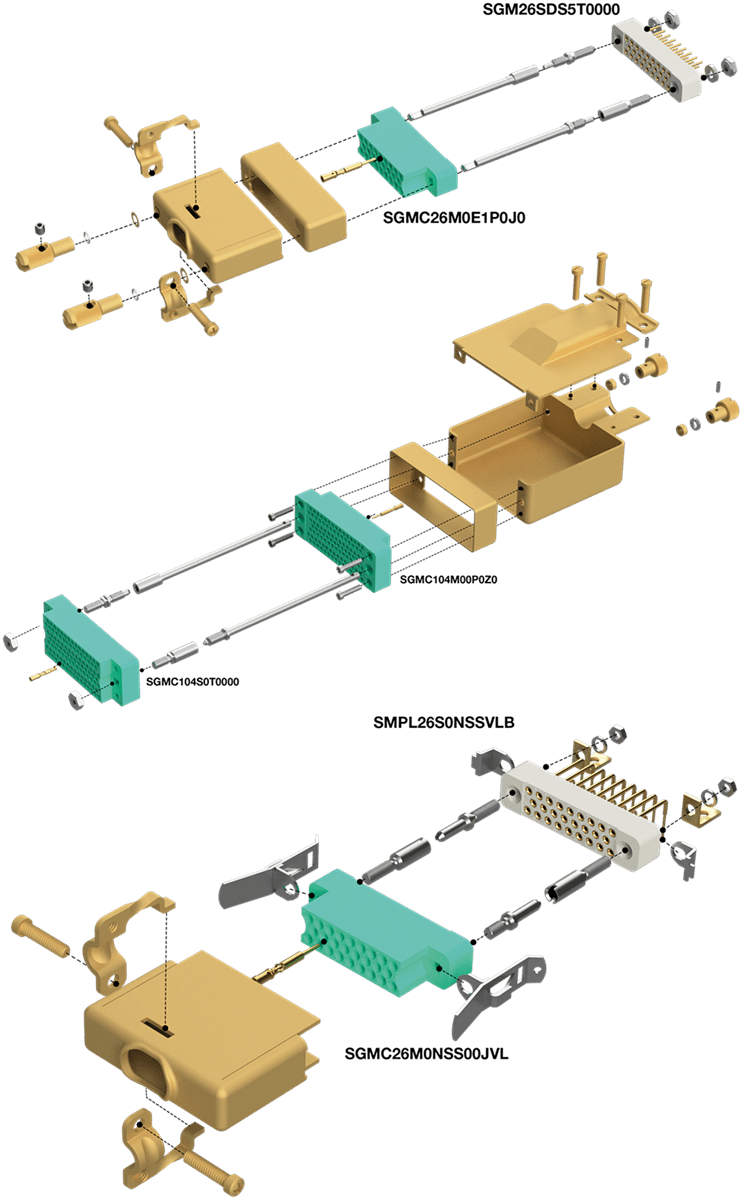

Exploded Views
