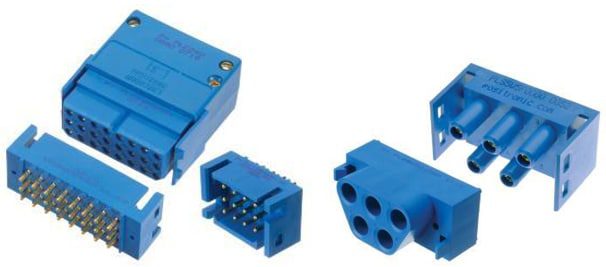

Positronic Power Connection Systems & Safety Shroud

Positronic Power Connection Systems and Safety Shroud are designed to allow the development of application-specific contact arrangements in a timely manner at a reasonable price. These PLA (H), PLB (H), PLC (H), and PLS (H) series connectors can be customized as per user specifications. The power connection systems feature thirteen connector housing sizes that accommodate size 8, size 12, size 16, or size 20 contacts. These connectors work at a voltage of 600V_rmsand a temperature range of -55°C to 125°C. Typical applications include automotive and EV, technology, off-highway, industrial, computing, and power supplies.

Features

Power connection system
- Low contact resistance
- Sequential mating options
- Discriminating locking system
- Board to board / board-cable / cable–cable
- Size 12 contacts with screw terminations
- Safety shrouded options
- Mixed density variants

Safety shroud
- Size 12 power contacts
- Large surface area mating system
- Discriminating locking system
- 40A contact current rating
- Board – cable / cable – cable

Specifications

40A contact current rating
600V_rmsworking voltage
5GΩ insulator resistance
500 mating cycles

Rectangular shape
Free cable, panel-mount body style
RoHS compliance
-55°C to +125°C operating temperature range

Applications

Automotive and EV
Technology
Computing and power supplies

Off-highway
Industrial

Positronic Power Connection Systems & Safety Shroud

Features

Specifications

Applications

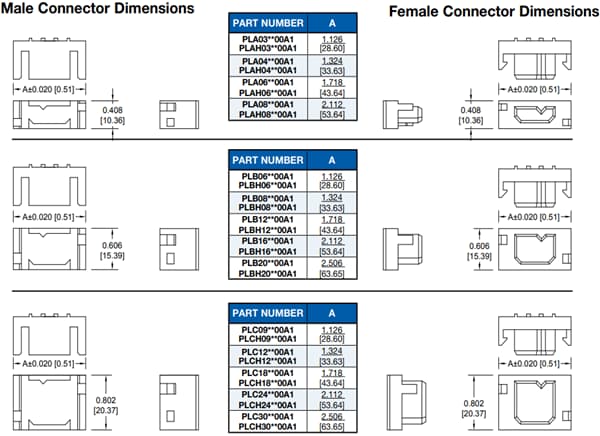

Basic Connector Dimensions
