Phoenix Contact TCP DC Circuit Breakers

Phoenix Contact TCP DC Circuit Breakers feature a pluggable solution designed as an alternative to automotive fuses. The TCP DC series provides a 32V_DC max rated voltage and Class III protection. The circuit breakers offer a 5A to 40A rated current range for female contacts and a 5A to 30A rated current range for male contacts. The Phoenix Contact TCP DC Circuit Breakers can easily be retrofitted into existing systems with vehicle flat-type fuses, which reduces on-site service work. The TCP DC series are constructed with various color markings for easy identification of the nominal current value.

Features

Thermal device circuit breakers
Reclosable
Two characteristic curves
Protection against unintentional restarting
32V_DC max rated voltage
1 position
1 channel

Class III protection
Pluggable connection
Base-element mounting
Female rated current options:
- 5A, 6A, 7.5A, 10A, 15A, 20A, 25A, 30A, 40A
Male rated current options:
- 5A, 6A, 7.5A, 10A, 15A, 20A, 25A, 30A

Specifications

100A rated short-circuit switching capacity
150A (≥3 shutdowns) to 2000A (≥1 switch-off) short-circuit switching capacity
32V_DC max rated voltage

Copper, tin-plated material
IP30 environmental rating
-40°C to +85°C operating temperature range
-40°C to +125°C storage/transport temperature range

Phoenix Contact TCP DC Circuit Breakers

Features

Specifications

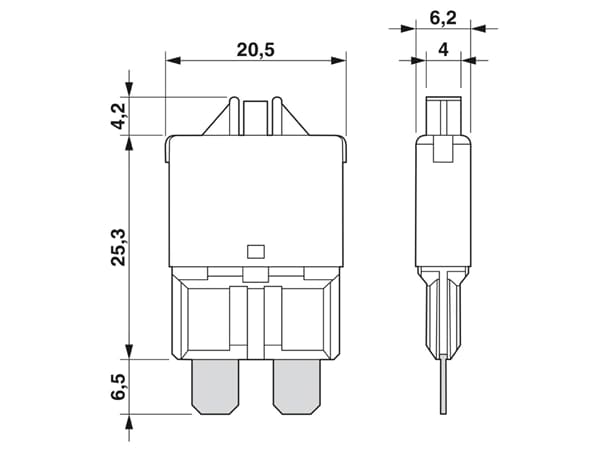

Dimensions (mm)

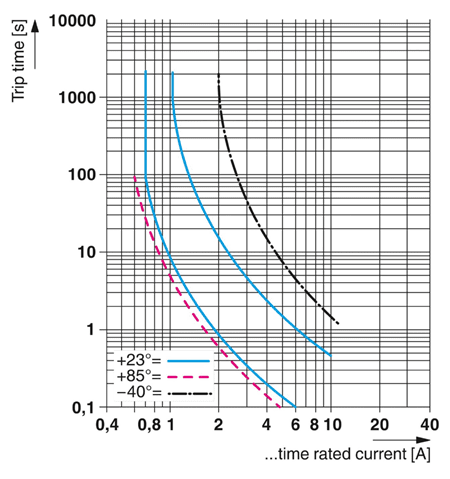

Trigger Characteristics
