Phoenix Contact PTVME 6/S Test Disconnect Terminal Blocks

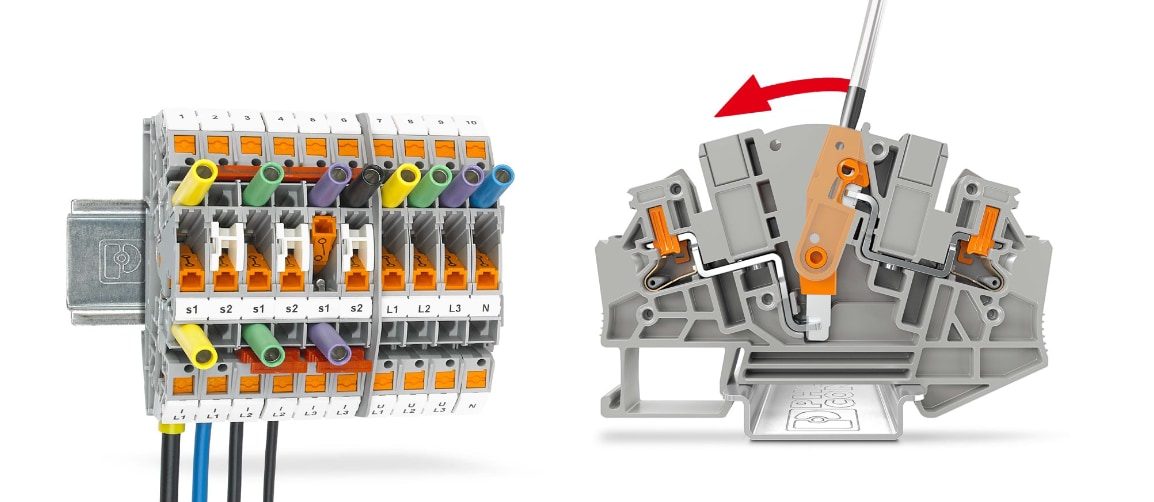

Phoenix Contact PTVME 6/S Test Disconnect Terminal Blocks are test disconnect terminal blocks for use in control applications such as control cabinets. These test terminal blocks serve as drop-in replacements to older UK series test disconnect blocks, and feature side entry conductors for clear wire identification. Phoenix Contact Test Disconnect Terminal Blocks feature a 1000V nominal voltage rating, 30A nominal current rating, and are suitable for wires between 20AWG and 10AWG.

Features

600V voltage rating
30A current rating
26-10 AWG wire thickness
Conductor side-entry for clear marking and wire identification
Available in multiple colors (Gray, Blue, Red, Green and Yellow)

Safe actuation, test, and disconnect of CT circuits
Space efficient, especially in shallow control cabinets
Wire duct design eliminates the need to bend wires
Drop-in replacement for older UK series test blocks

Specifications

1000V nominal voltage
30A nominal current
30A maximum load current rating

26-10 AWG wire thickness
8kV rated surge voltage
V0 flammability rating
