Phoenix Contact M12 POWER H/Y Shielded Distributors

Phoenix Contact M12 POWER H/Y Shielded Distributors aid in cabling a large range of loads quickly and clearly when used with the M12 POWER distributor boxes. These devices are ideal for use in AC and DC applications up to 16A and 630V in a -40°C to +85°C temperature range. Reliable 360° shielding provides secure protection against electromagnetic interference. The M12 POWER H/Y Shielded Distributors feature two mounting holes for secure fixing. Once the distributor is secure, M12 connectors can be added.

Features

For use in AC and DC applications up to 16A and 630V
Potential for saving through the distribution and bundling of power
Reliable 360°shelded construction
Secure fixing with two mounting holes

M12 connectors can be mounted after securing the distributor
Standardized in accordance with IEC 61076-2-111
IP65/IP67 protection ratings
UL 94V-0 rating

Specifications

12A or 16A current options
630V_AC or 63V_DC voltage options
4 or 5 positions
Design
- 1x male to 3x female for the H type
- 1x male to 2x female for the Y type
-40°C to +85°C ambient temperature range

Overvoltage category III
Degree of pollution – 3
>100 insertion/withdrawal cycles
Torque
- 1Nm for fixing the housing
- 0.6Nm for the M12 connector

Phoenix Contact M12 POWER H/Y Shielded Distributors

Features

Specifications

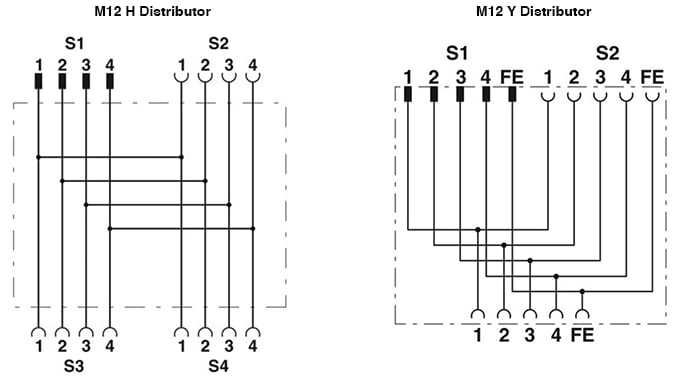

Circuit Diagrams
