Performance Motion Devices Juno® Velocity & Torque Control ICs

Performance Motion Devices Juno® Velocity and Torque Control ICs provide advanced control for brushless DC, DC brush motors, and step motors. These compact ICs integrate full four-quadrant motion control, direct input quadrature encoder, profile generation, and advanced current control. Juno ICs are targeted for medical, scientific, industrial, and robotic applications that need to minimize motor noise, vibration, and power consumption. Juno ICs are easy to deploy with embedded motion commands, on-board intelligence, and direct analog and digital amplifier signal interfacing.

Juno ICs interface to external bridge-type switching amplifiers and utilize Performance Motion Device’s proprietary current and switch-signal technology for ultra-smooth operation. Depending on the type of motor controlled, Juno ICs provide motor commutation, microstep generation, pulse and direction input, internal profile generation, and much more.

Juno ICs are equipped with advanced amplifier management features such as overcurrent, over/undervoltage, and overtemperature sense. A special outer control loop allows a wide range of motor-related control applications, including pressure, flow rate, and temperature control.

Juno ICs are offered in three major product groups:

Juno Velocity Control ICs: Sophisticated velocity and torque control of 3-phase DC brush and brushless DC motors
Torque Control ICs: Ultra precise torque control for 3-phase brushless DC and DC brush motors with direct analog or SPI command input
Step Motor Control ICs: State of the art step motor control with pulse and direction or SPI command input

These devices are offered in compact 64-pin TQFP and ultra-compact 56-pin VQFN packages.

Features

Controls 3-phase DC brush, brushless DC, or step motors
High performance digital current loop
Velocity loop with encoder or tachometer feedback
Internal profile generator
Sinusoidal or 6-step commutation
Field Oriented Control
Hall sensor inputs
PWM output with shoot-through protection
Direct analog signal input
Serial port up to 460kBaud
Quadrature encoder input up to 40M counts/sec
NVRAM configuration load and trace memory

Compact 64-pin TQFP and ultra-compact 56-pin VQFN packages
High-speed index input and capture
SPI (Serial Peripheral Interface) command input
Brake signal input
10kHz velocity loop
20kHz, 40kHz, 80kHz, 120kHz
PWM rate
20kHz or 40kHz commutation and current loop rate
i2t current foldback protection
Over and under-voltage protection
Pulse and direction input

Applications

Medical and scientific applications
Industrial automation
Robotics

Documents

Juno Family of Velocity and Torque Control ICs
Juno Velocity and Torque Control IC User Guide
Juno Step Motor Control IC User Guide
Juno Torque Control IC User Guide

Juno Velocity and Torque Control IC Programming Reference
MC78113 Electrical Specifications

Performance Motion Devices Juno® Velocity & Torque Control ICs

Features

Applications

Documents

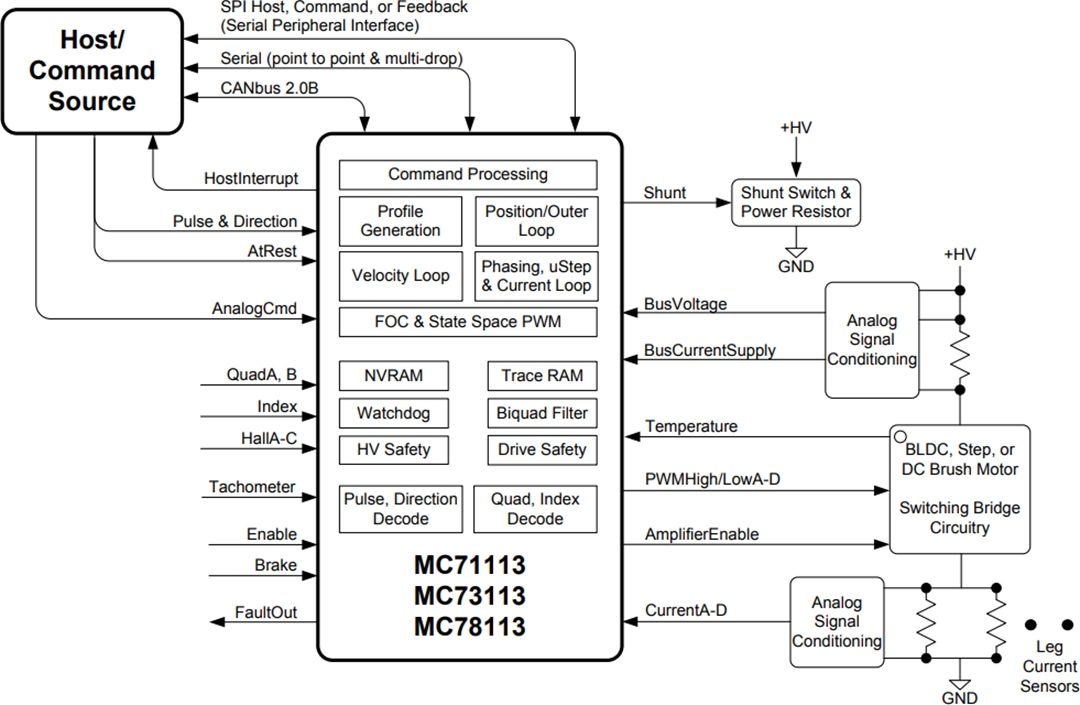

Velocity Control Overview

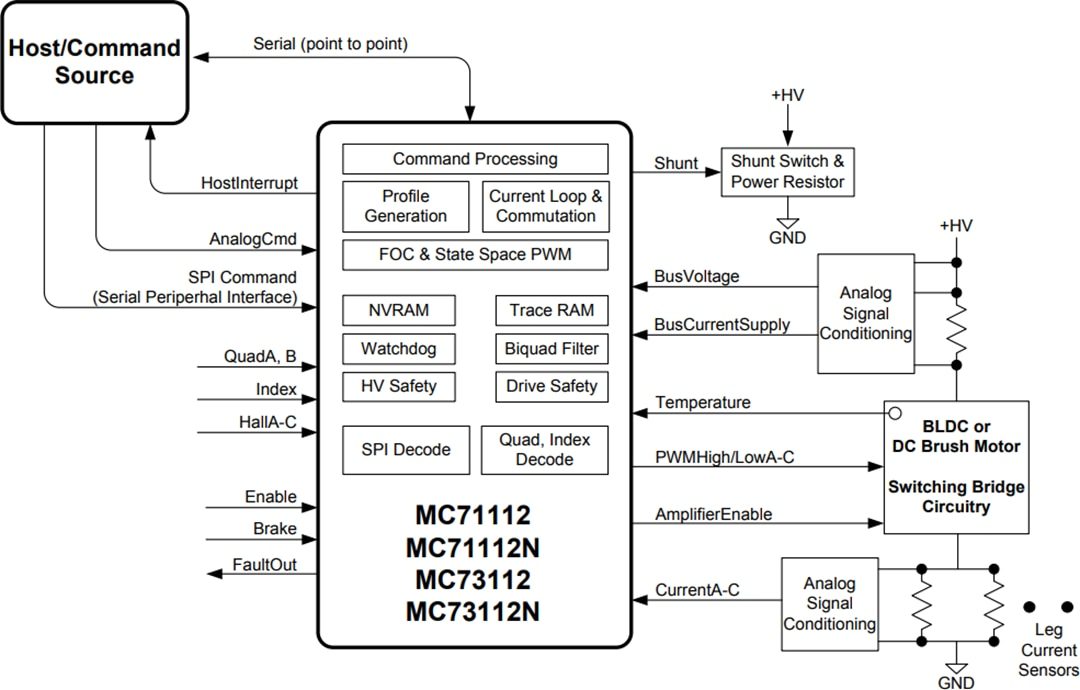

Torque Control Overview

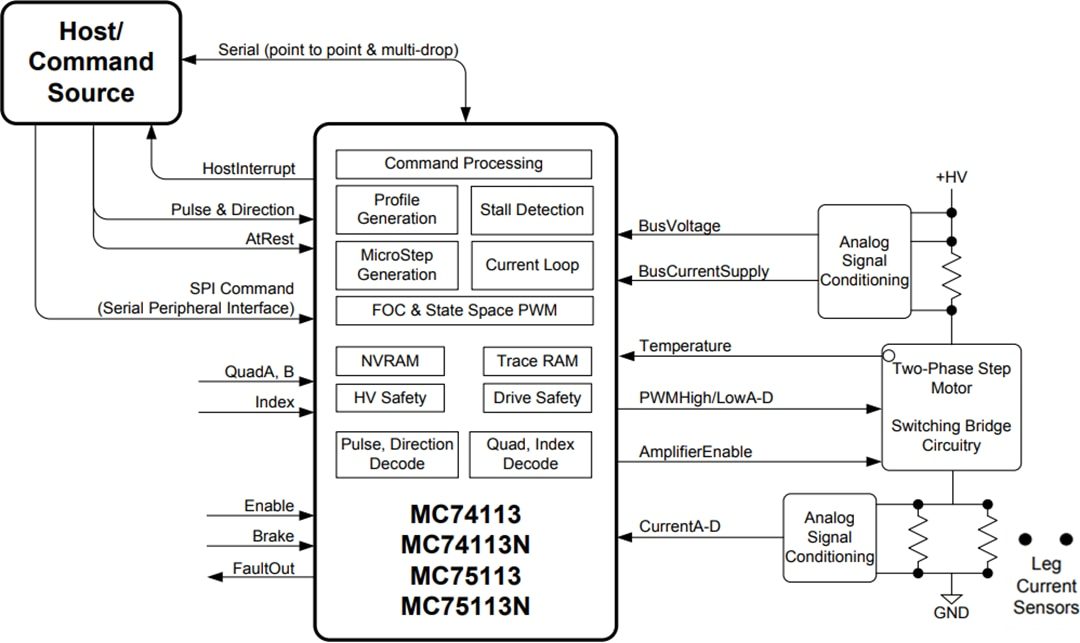

Step Motor Control Overview
