Particle M2EVAL SoM B Series Evaluation Board

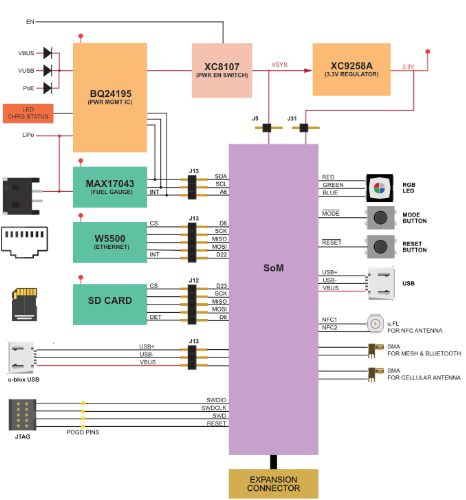

Particle M2EVAL SoM B Series Evaluation Board is a breakout board for B series cellular IoT module. The board features a redundant USB port, a connector for the LiPo battery, a barrel jack power connector, buttons, RGB LED, and charge status LED. This evaluation board requires minimum power of 5V_DC at 500mA with LiPo battery and 5V_DC at 2000mA without LiPo battery. The B series evaluation board also features SoM power switch, LiPo battery connector, cellular antenna, and Bluetooth^® antenna.
