Parallax Propeller 2 Edge Mini Breakout Board

Parallax Propeller 2 (P2) Edge Mini Breakout Board is a minimalist and fully functional programming system for the P2 Edge module. This breakout board comes with an 80-pin socket for the P2 Edge module, a 2.1mm power jack, a prop plug programming port, and a reset button. The P2 Edge mini breakout board paired with a P2 Edge provides the best value for a compact Propeller 2 multicore microcontroller programming system. Typical applications include portable Propeller 2 multicore microcontroller development system, compact breadboard interface via jumper wires, and ready-made interface for custom embedded system integration.

Features

Minimalist and fully functional programming system for the P2 Edge module
80-pin socket for the P2 Edge
2.1mm power jack
Prop plug programming port
Reset button

Four 2×6 headers
Provides the best value for a compact P2 multicore MCU programming system
Accepts P2 WX adapter add-on board (#64007) for wireless P2 programming
Convenient reset button and mounting holes

Specifications

5V_DC and an absolute maximum of 5.5V_DC voltage input requirements
100mA minimum input current requirements
V_IO power supplies:
- 3.3V up to 300mA per 8 I/O pins (requires P2-EC Edge module)
USB programming:
- Serial up to 2MBaud and requires a prop plug and cable

Wireless programming:
- Requires P2 WX adapter add-on and parallax WX ESP8266 WiFi module
-40°C to 85°C operating temperature range
80mm x 35.5mm PCB dimensions

Applications

Portable Propeller 2 multicore microcontroller development system
Compact breadboard interface via jumper wires
Ready-made interface for custom embedded system integration

Parallax Propeller 2 Edge Mini Breakout Board

Features

Specifications

Applications

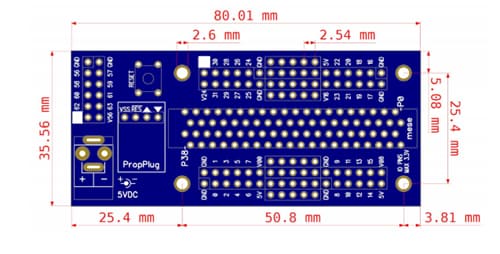

Dimensional Diagram
