PANJIT STR 100V Super Schottky Low VF Barrier Rectifiers

PANJIT STR 100V Super Schottky Barrier Rectifiers provide an extremely low forward voltage (V_F) to decrease the breakdown current. These devices have a 5A to 15A maximum average forward current range and a 50A maximum reverse current. The STR Schottky Barrier Rectifiers also feature high surge current capability, low leakage, and reduced reverse loss.

The PANJIT STR 100V Super Schottky Barrier Rectifiers are offered in a DO-201AD through-hole package and SMBF and SMAF-C surface-mount packages for design flexibility.

Features

Extremely low forward voltage
High current capability
High surge current capability
Low leakage
Lead-free in compliance with EU RoHS 2.0

Plastic package has Underwriters Laboratory Flammability Classification 94V-O
Green molding compound as per IEC 61249 standard
Through-hole and surface-mount package options

Applications

Uninterruptible power supplies (UPS)
Telecommunications
Data centers

Process supplies in chemical and petrochemical industries
Power supplies in hospital rooms and intensive care units

Specifications

100V maximum repetitive peak reverse voltage (V_RRM)
70V maximum RMS voltage (V_RMS)
0.72V to 0.79V forward voltage range (V_F)
5A to 15A maximum average forward current range (I_F(AV))

100A to 140A peak forward surge current range (I_FSM)
50A maximum reverse current (I_R)
-55°C to +150°C operating junction temperature range (T_J)
DO-201AD, SMBF, and SMAF-C package options

Package Options

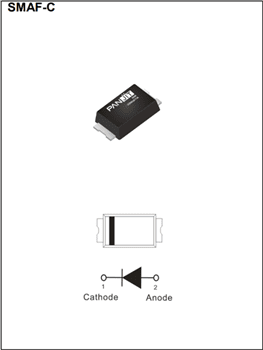

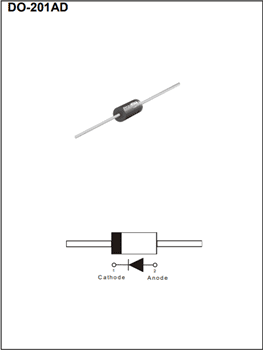

Mechanical Drawing - PANJIT STR 100V Super Schottky Low VF Barrier Rectifiers

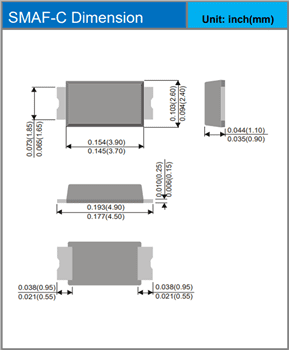

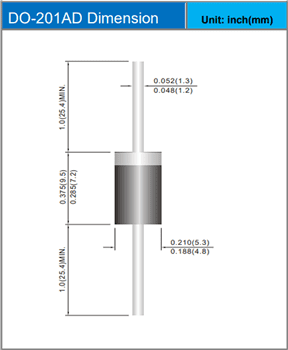

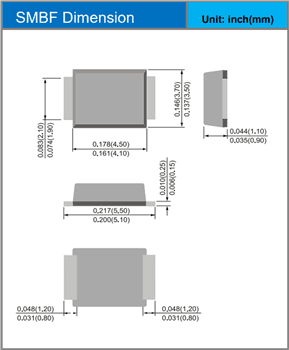

Package Dimensions
