PANJIT MBR8H120PCx Schottky Barrier Rectifiers

PANJIT MBR8H120PCx Schottky Barrier Rectifiers are surface-mount ultra-low reverse current (I_R) rectifiers with low leakage current. These rectifiers feature low power loss, high efficiency, and high surge current capability. The MBR8H120PCx Schottky barrier rectifiers are available in 120V voltage and 8A current options and in the TO-227C package. These rectifiers are lead-free in compliance with EU RoHS 2.0 and green molding compound as per IEC 61249 standard. The MBR8H120PCx Schottky barrier rectifiers are ideal for automated placement.

Features

Low power loss
High efficiency
High surge current capability
Ideal for automated placement
120V maximum recurrent peak reverse voltage
8A maximum average forward rectified current

Lead-free in compliance with EU RoHS 2.0
Green molding compound as per IEC 61249 standard
Available in TO-227C package
-55°C to 175°C operating junction temperature range
AEC-Q101 qualified (MBR8H120PC-AU)

PANJIT MBR8H120PCx Schottky Barrier Rectifiers

Features

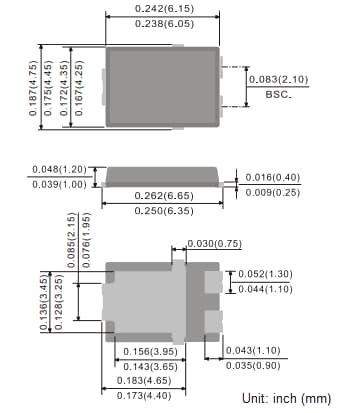

TO-277C Dimension Diagram
