PANJIT GBU Glass Passivated Bridge Rectifiers

PANJIT GBU Glass Passivated Bridge Rectifiers feature a glass passivated chip junction designed for power applications. The rectifiers support superior thermal conductivity and a low forward voltage drop. The PANJIT GBU rectifiers are ideal for servers, game consoles, computing, and high-efficiency power applications. The devices are housed in a GBU-2 package.

Features

Glass passivated chip junction
Low forward voltage drop
Superior thermal conductivity

Lead-free in compliance with EU RoHS 2.0
Halogen-free according to IEC 61249 standard

Applications

Computing power/desktop power
Game console power
Server power

Air conditioner outdoor power board
High power/high-efficiency power
Home appliances power board

Specifications

GBU2008LV
- 800V V_RRM
- 20A
GBU3510H
- 1000V V_RRM
- 35A
GBU2510H
- 1000V V_RRM
- 25A

5µA I_R
20A to 35A forward current range
0.92V to 1.1V forward voltage
700A or 800A maximum surge current
-55°C to +150°C/+175°C operating temperature range
GBU-2 package

Typical Application

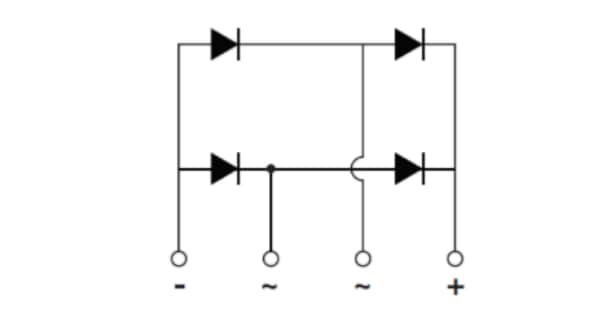

Application Circuit Diagram - PANJIT GBU Glass Passivated Bridge Rectifiers

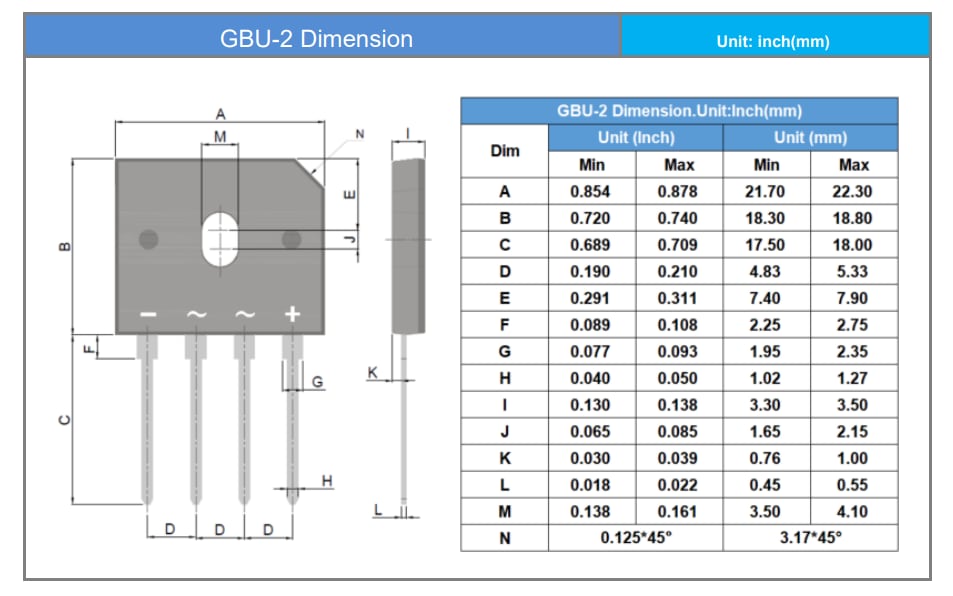

Mechanical Drawing - PANJIT GBU Glass Passivated Bridge Rectifiers
