PANJIT 5KMC Transient Voltage Suppressor (TVS) Diodes

PANJIT 5KMC Transient Voltage Suppressor (TVS) Diodes are designed to sustain 5KW peak pulse power dissipation (tp = 10μs/1000μs). These surface mount TVS diodes feature a 12V minimum supply voltage, 260°C/10s high-temperature soldering at terminals, and a -55°C to 150°C operating temperature range. The 5KMC TVS diodes are lead-free compliant with EU RoHS 2.0 and weigh approximately 0.2325g. These diodes are ideal for server motherboards, I/O interfaces, and V_CC bus protection applications.

Features

5KMC12AS – 5KMC100AS:
- 12V to 100V supply voltage range
- Low inductance
5KMC12AS-AU – 5KMC70AS-AU:
- 12V to 70V supply voltage range
- AEC-Q101 qualified
-55°C to 150°C operating temperature range
260°C/10s high-temperature soldering at terminals

5KW peak pulse power dissipation
ROHS compliant
Molded plastic case
SMC package
Terminals are solderable as per MIL-STD-750, method 2026
0.2325g approximate weight

Applications

Server motherboard
I/O interface
VCC bus protection

PANJIT 5KMC Transient Voltage Suppressor (TVS) Diodes

Features

Applications

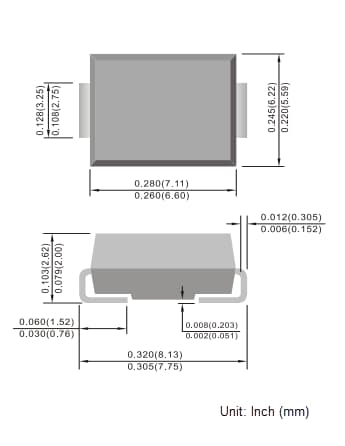

Dimensions Diagram

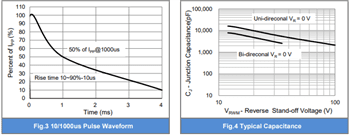

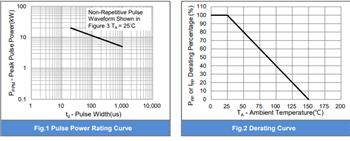

Performance Graphs
