PANJIT 1000V Bridge Rectifiers offer a reliable glass passivated solution in industry-standard SMD/SMT and through-hole packages. These 1000V Bridge Rectifiers feature a 0.5A to 50A forward current range and a maximum surge current range from 30A to 1000A. These single-phase devices are ideal for power supplies for computers and servers, appliances, display panels, and air conditioners.

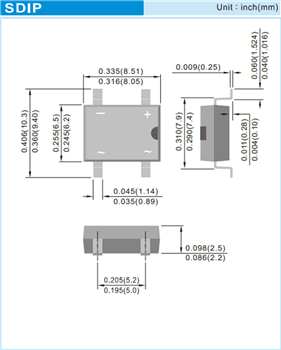

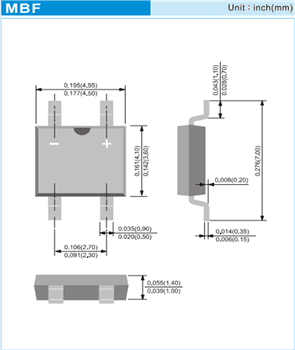

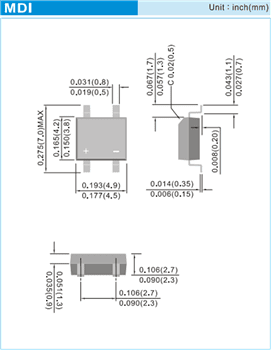

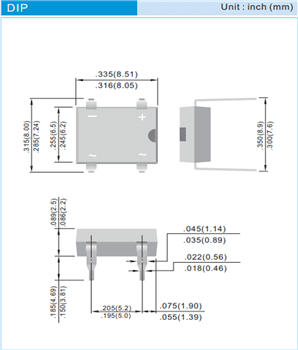

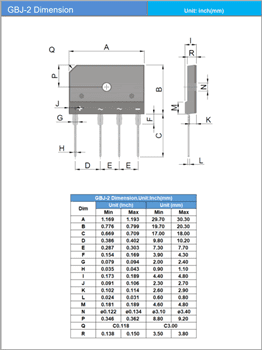

The PANJIT 1000V Bridge Rectifiers are offered in DIP-4, GBJ-2-4, MBF-4, MDI-4, and SDIP-4 packages for design flexibility. The compact size of the Bridge Rectifiers makes them well-suited for use in high-density board designs. These devices conform to JEDEC standards and are easy to handle with standard pick and place equipment.
