Panduit VeriSafe 2.0 Absence of Voltage Tester

Panduit VeriSafe 2.0 Absence of Voltage Testers (AVTs) simplify the voltage testing process by preventing exposure to electrical hazards. The fail-safe design features an active indication to determine the voltage status within 10 seconds of activation. Panduit VeriSafe 2.0 AVTs can troubleshoot abnormal power conditions and utilize network modules for remote monitoring up to a 1000V_AC/DC voltage range. The AVTs are available with battery-free or battery-powered indicators and are ideal for power distribution, motor control, automation, and industrial and commercial applications.

Features

Improved safety and risk reduction
No exposure to electrical hazards while testing
Simplified process for easier compliance
Fail-safe design with active indications
Redundant channels for measurement and detection
Results within 10 seconds of activation

Troubleshoots abnormal power conditions
Utilizes network module for remote monitoring
NFPA 70E 120.5(7) Exception 1 criteria met
CSA Z462 4.2.5 (g) Exception 2 criteria met
UL 1436 listing

Applications

Power distribution
Motor control
Automation
Data centers

Industrial facilities
Commercial facilities
Indoor and outdoor use

Specifications

Up to 1000V_AC/DC voltage detection range
-25°C to +60°C operating temperature range
-45°C to +85°C storage temperature range
5% to 90% non-condensing humidity range
Up to 5000 meters altitude capability

Industrial 3.6V lithium battery
35mA max auxiliary power at 12V_DC
17mA max auxiliary power at 24V_DC
RoHS compliant

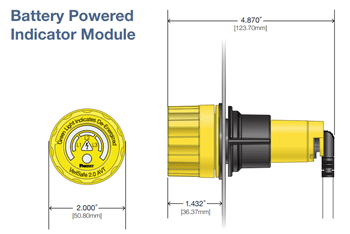

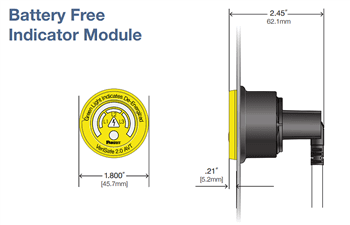

Dimensions

Chart - Panduit VeriSafe 2.0 Absence of Voltage Tester

Panduit VeriSafe 2.0 Absence of Voltage Tester

Features

Applications

Specifications

Dimensions

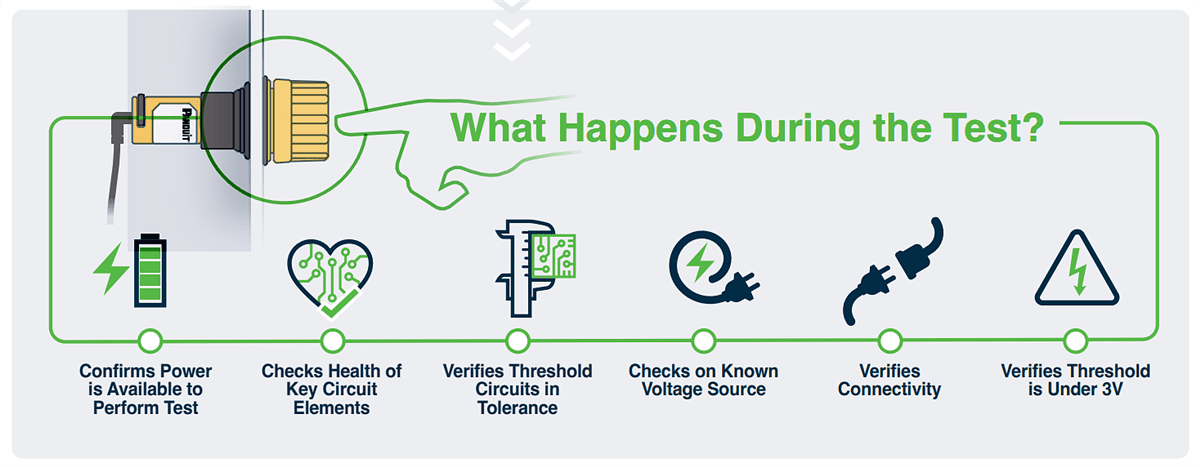

Test Procedure

Videos
