Panasonic Industrial Devices RA High-Frequency Signal Relays

Panasonic Industrial Devices RA High-Frequency Signal Relays are microwave devices featuring a 50Ω impedance, a 2 Form C contact arrangement, and 10 million operation durability. These relays offer a carrying power of 3W (at 1GHz). With capabilities up to 1GHz, these relays are ideal for communication and measurement equipment. The RA Signal Relays operate with a -40°C to +85°C temperature range and feature a 1.5V_DC to 48V_DC rated coil range with a 140mW to 300mW rated operating power range.

Features

Excellent high-frequency characteristics (50Ω up to 1GHz)
Small 14.7mm x 9.7mm x 5.9mm size (LxWxH)

High sensitivity with a 140mW rated operating power (single side stable and 2-coil latching)
RoHS compliant

Applications

Communication equipment
Measurement equipment

Specifications

1.2 maximum VSWR
0.3dB maximum insertion loss
Minimum isolation
- 20db between open contacts
- 30dB between contact sets
2 Form C contact arrangement
1.5V_DC to 48V_DC rated coil voltage
-40°C to +85°C temperature range

4.2mA to 93.8mA rated operating current range (±10%, at +20°C)
16Ω to 7,680Ω coil resistance range (±10%, at +20°C)
70mW to 300mW rated operating power range
30V_DC maximum switching voltage
1A_DC maximum switching current

Panasonic Industrial Devices RA High-Frequency Signal Relays

Features

Applications

Specifications

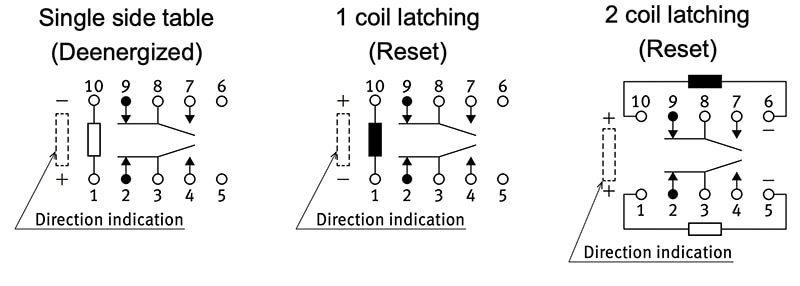

Schematics
