Panasonic Industrial Devices ASQMR1 Seal Type Mini Snap Action Switches

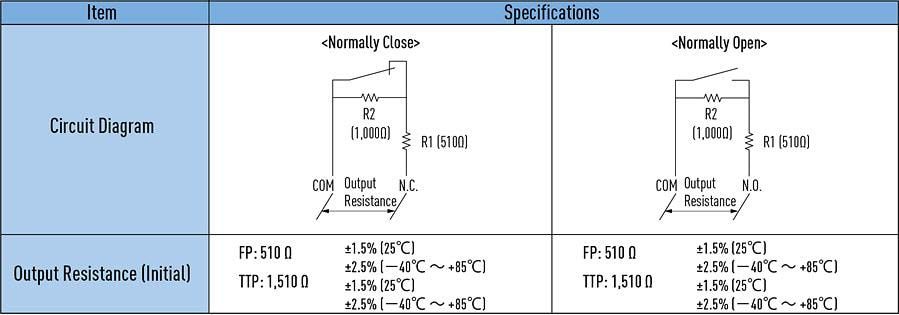

Panasonic ASQMR1 Seal Type Mini Snap Action Switches have sealed switches with a built-in resistor to protect circuits and prevent malfunctions. The installed resistor detects disconnection and short circuits while contributing to miniaturization and decreased weight by not requiring a separate resistor on the board. The switches provide silent operation and a long stroke with sliding contacts. The series is available in three terminal types: solder terminal, fork terminal, and wire leads type. Panasonic ASQMR1 Seal Type Mini Snap Action Switches deliver stable operation, even when exposed to hazardous environments such as water, dust, and humidity.

Features

Small profile: 8.95mm x 8.3mm x 5.3mm

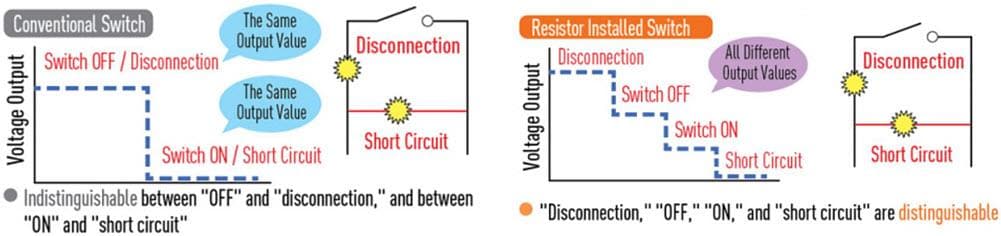

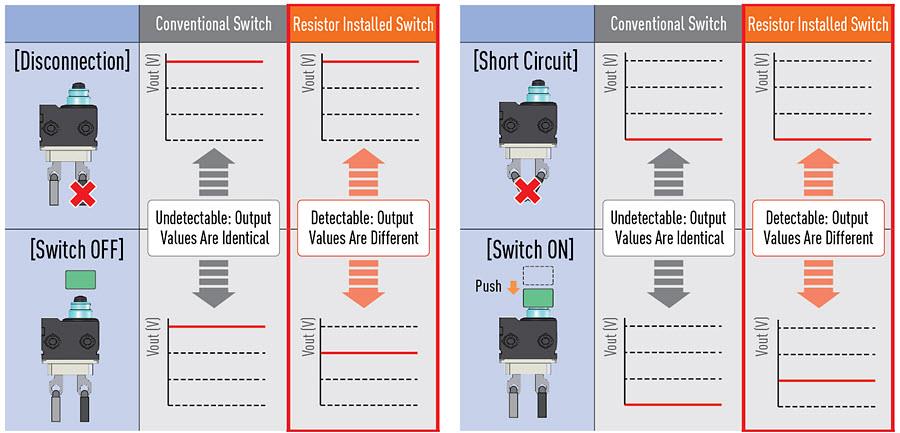

Built-in resistor detects disconnection and short circuit of wiring
Miniaturization achieved by changing from 1 Form C to 1 Form A or 1 Form B contacts
Operation possible by various moving parts, such as metal cams

Contact force does not depend on operation stroke
High contact reliability to support low-level switching loads
IP67 rated, water and dust resistant
Silent operation with sliding contacts
Lever installation possible
RoHS and REACH compliant

Applications

Automobiles
- Door open / close detection
- Shift lever position
Industrial safety equipment
- Remote-controlled robots
- Electric power tools
- Automatic agricultural machinery
