Panasonic Industrial Devices APV High Power Type Photovoltaic MOSFET Drivers

Panasonic APV High Power Type Photovoltaic MOSFET Drivers provide high-speed operation and low on-resistance in a miniature, surface mount SSOP package. Operating within a temperature range of -40°C to +85°C, the components also feature a 1500Vrms I/O isolation voltage, a 0.8pF typical I/O capacitance, and a 1000MΩ initial I/O isolation resistance at 500V_DC. The APV Photovoltaic MOSFET Drivers from Panasonic are ideal for measuring equipment, testing equipment, industrial machinery, industrial equipment, data centers, and FA power supplies.

Features

Miniature, surface mount SSOP package
1 Form A output configuration
High-speed MOSFET operation (APV1111GVY – high output current)

Low-on MOSFET resistance (APV3111GVY – high output voltage)
RoHS compliant

Applications

Measuring equipment
Testing equipment
Industrial machinery

Industrial equipment
Datacenter
FA power supply

Specifications

Output rating
- 8.5V or 18V typical drop-out voltage
- 45µA or 12µA typical short circuit currents
Input
- 30mA LED forward current
- 5V LED reverse voltage
- 1A peak forward current
- 60mW power dissipation

1500Vrms I/O isolation voltage
Ambient temperature ranges
- -40°C to +85°C operating
- -40°C to +100° storage
0.8pF typical I/O capacitance
1000MΩ initial I/O isolation resistance at 500V_DC

Panasonic Industrial Devices APV High Power Type Photovoltaic MOSFET Drivers

Features

Applications

Specifications

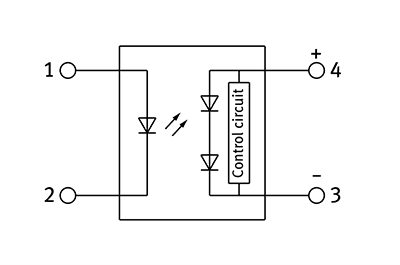

Schematic

Wiring Diagram
