Panasonic EZP-V Plastic Film Capacitors

Panasonic EZP-V Plastic Film Capacitors offer 600V_DC, 700V_DC, 800V_DC, 1000V_DC, and 1100V_DC voltage options and a built-in fuse function in a small package. These plastic film capacitors provide high safety and long product life. The EZP-V capacitors are highly moisture-resistant, highly reliable, and AEC-Q200 compliant. These plastic film capacitors feature a 3µF to 110µF capacitance range and a -40°C to 105°C operating temperature range and are RoHS and REACH compliant. The EZP-V capacitors are ideal for various applications, including DC filtering, DC link circuit, solar inverters, wind power generation, automotive onboard chargers, and power converters.

Features

High safety (with safety function)
High moisture resistance
High reliability
Low loss and low equivalent series resistance (ESR)

Long product life
Flame retardant (case and sealing resin)
AEC-Q200 compliant
RoHS and REACH compliant

Applications

DC filters and DC-link circuits
Solar inverters
Wind-power generation
Industrial power supplies

Inverter circuits in appliances
Automotive
- Onboard chargers
- AC/DC and DC/DC converters

Specifications

Polypropylene film dielectric
Metalized dielectric electrodes with segmented pattern
UL 94V-0 plastic case and sealing
Tinned-wire terminals with 2- and 4-pin versions

-40°C to +105°C operating temperature range
600V_DC, 700V_DC, 800V_DC, 1000V_DC or 1100V_DC rated voltage
3µF to 110µF capacitance range
±10% capacitance tolerance

Panasonic EZP-V Plastic Film Capacitors

Features

Applications

Specifications

Videos

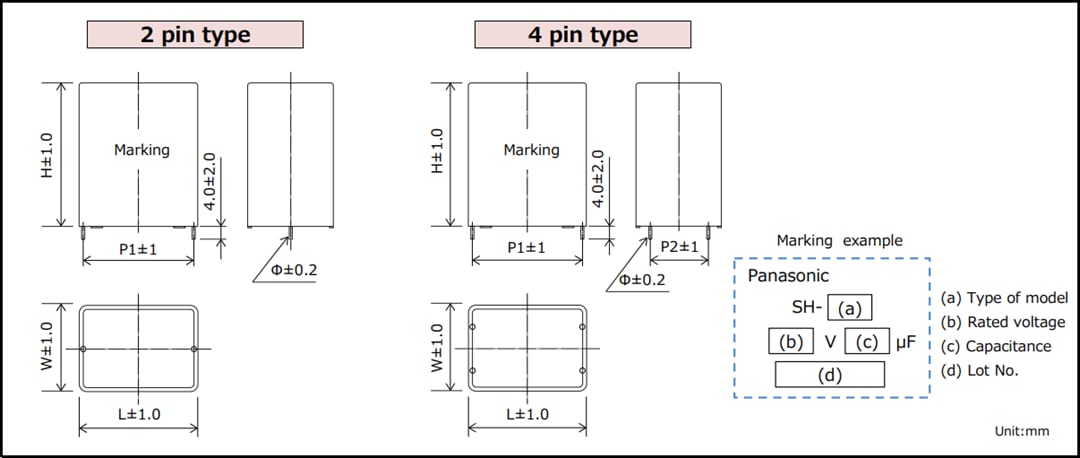

Package Dimensions
